Configuring SCIM in Entra (Microsoft)

To setup SCIM, you will need a user in babelforce dedicated only for the integration (e.g. call it scim@mycompany.com). Once this user exists, you will need to get in touch with the Success team. We will provide you with a long living token which is necessary to make the integration work

Adjusting necessary settings in babelforce

To use Entra, a change in SCIM settings on babelforce's side is necessary. Unfortunately, this is not yet available via frontend. Therefore, this needs to be done via API. However, this is a pending feature request that should eventually be available.

This is how settings should be adjusted via CuRL:

curl -X 'PUT' \
'https://latest.dev.babelforce.com/auth/scim/v2/configuration' \
-H 'accept: application/json' \
-H 'Authorization: Bearer ${YOUR_BEARER}' \
-H 'Content-Type: application/json' \
-d '{
  "defaultRoles": [],
  "customizer": "microsoft",
  "features":
  {
    "scim": true,
    "groups": false,
    "roles": true,
    "password_sync": false,
    "phone_number_sync": false
  }
}'

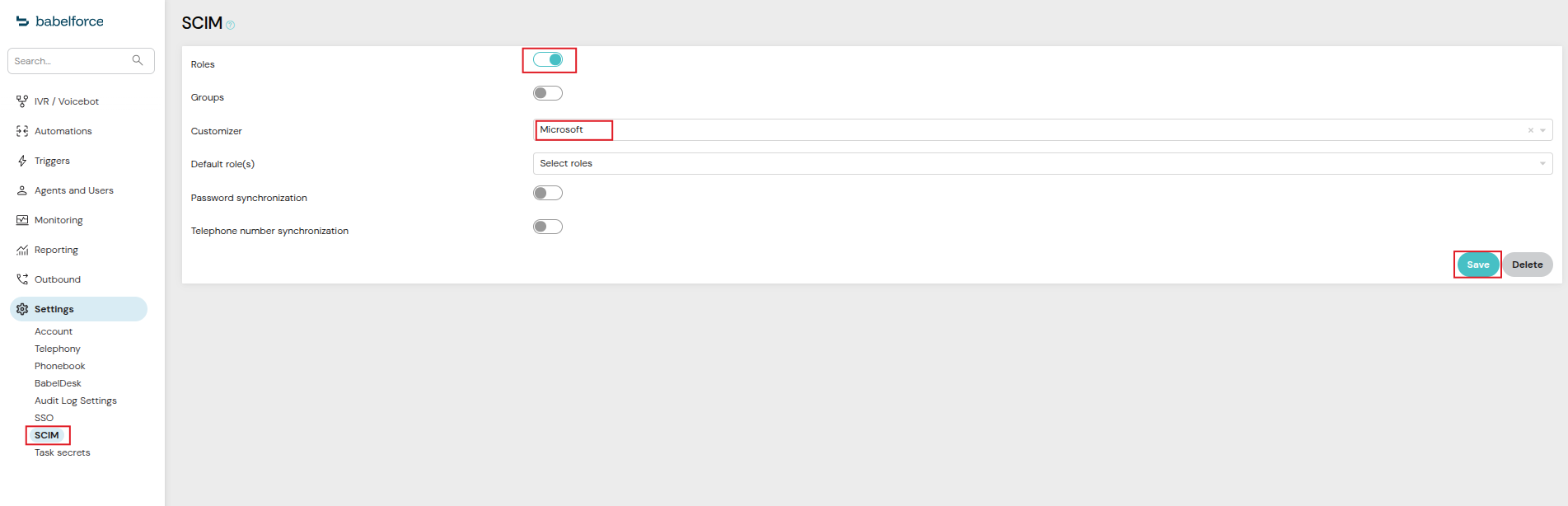

You can also use our developer-hub directly, here the link to the EU namespace:

https://apps.babelforce.com/developer-hub/scim/#/scimConfig/createSCIM

There, you apply the same settings as above:

{
"defaultRoles": [],
"customizer": "microsoft",
"features":
 {
  "scim": true,
  "groups": false,
  "roles": true,
  "password_sync": false,
  "phone_number_sync": false
 }
}

Setting up SCIM in Entra

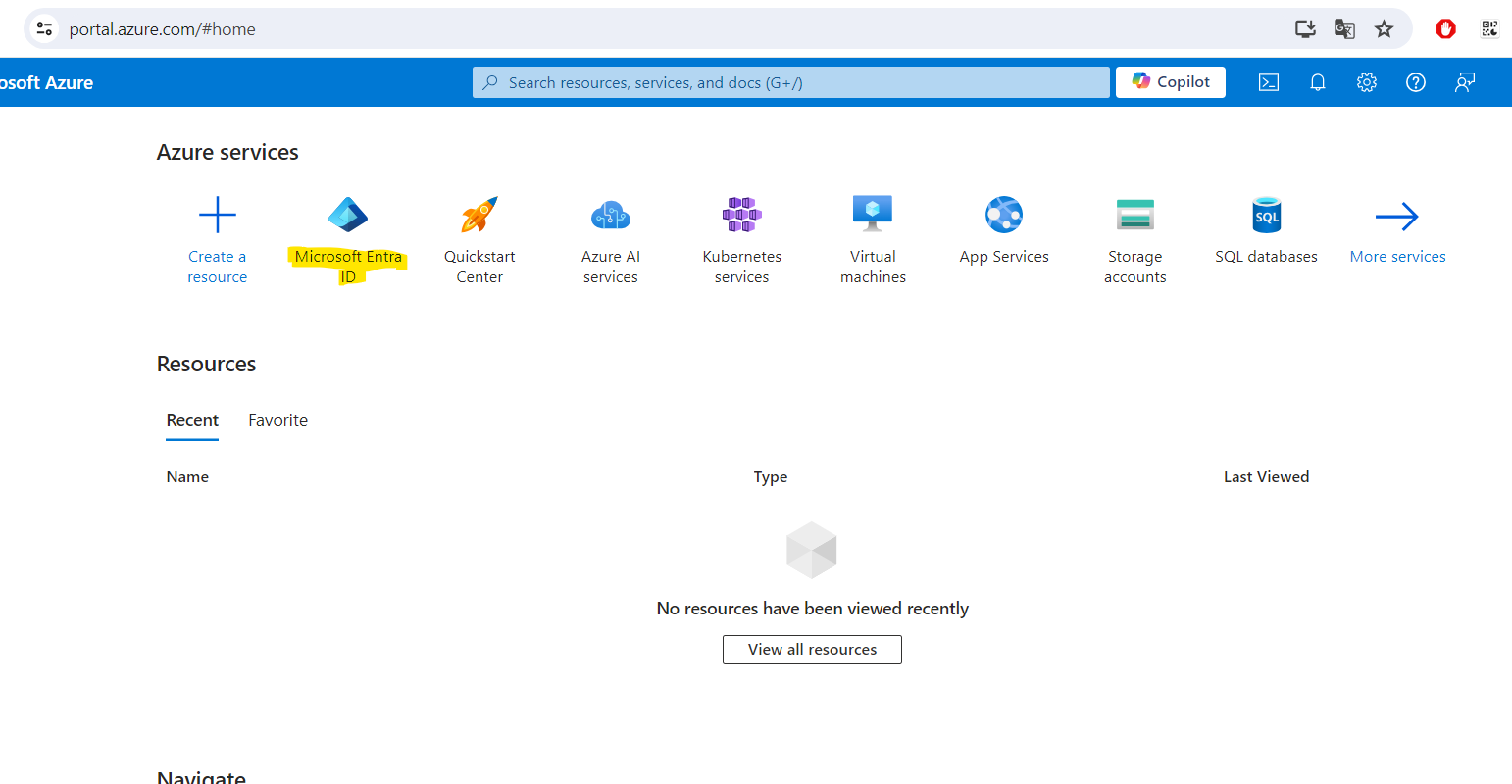

• Login to https://portal.azure.com/

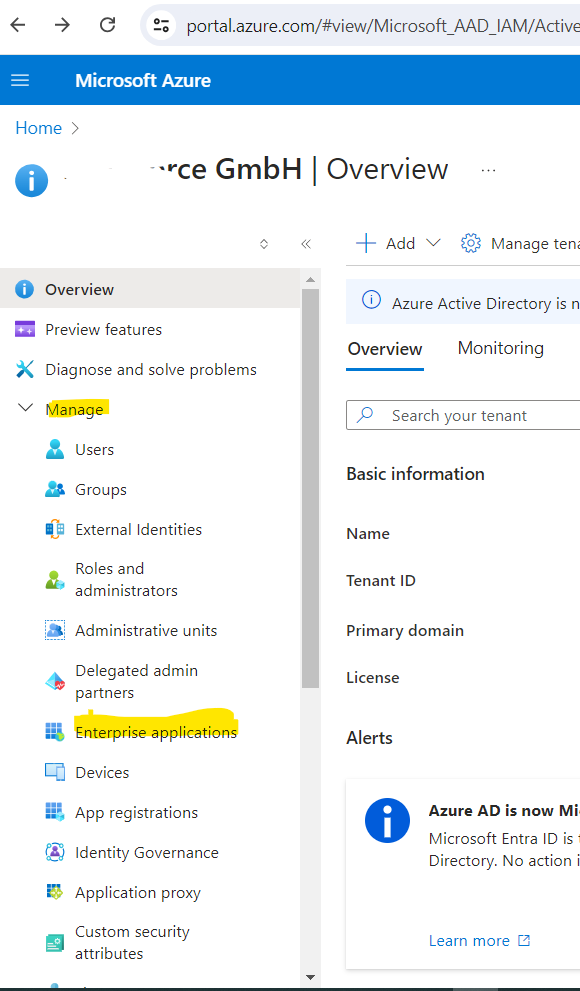

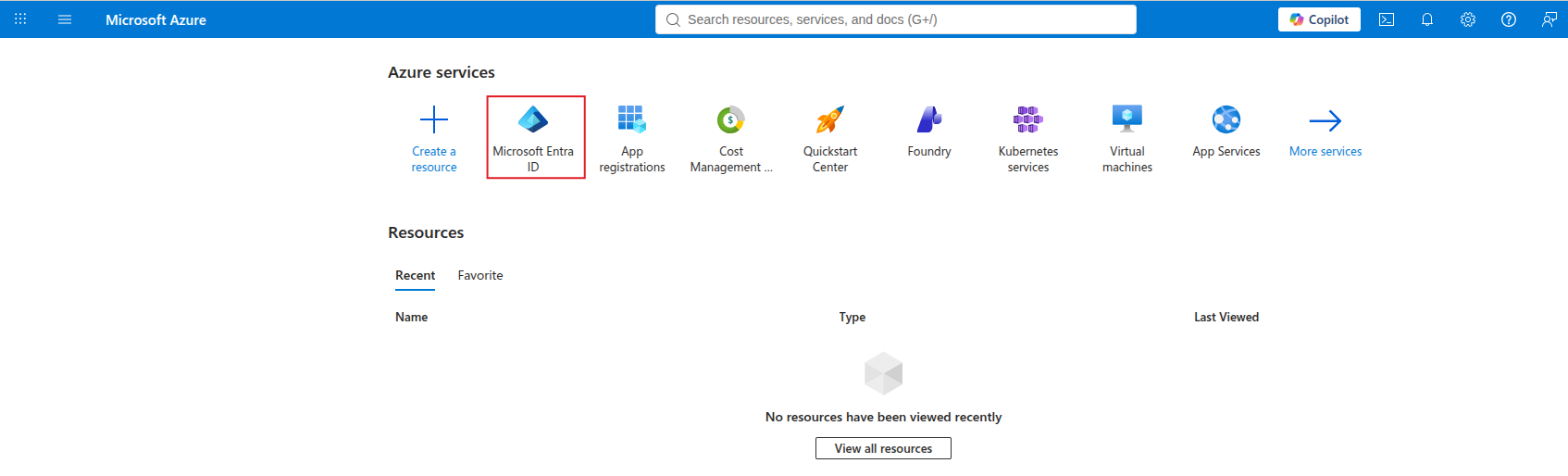

• Click on Microsoft Entra ID
  •
• Click on "Manage" > "Enterprise Applications"
  •

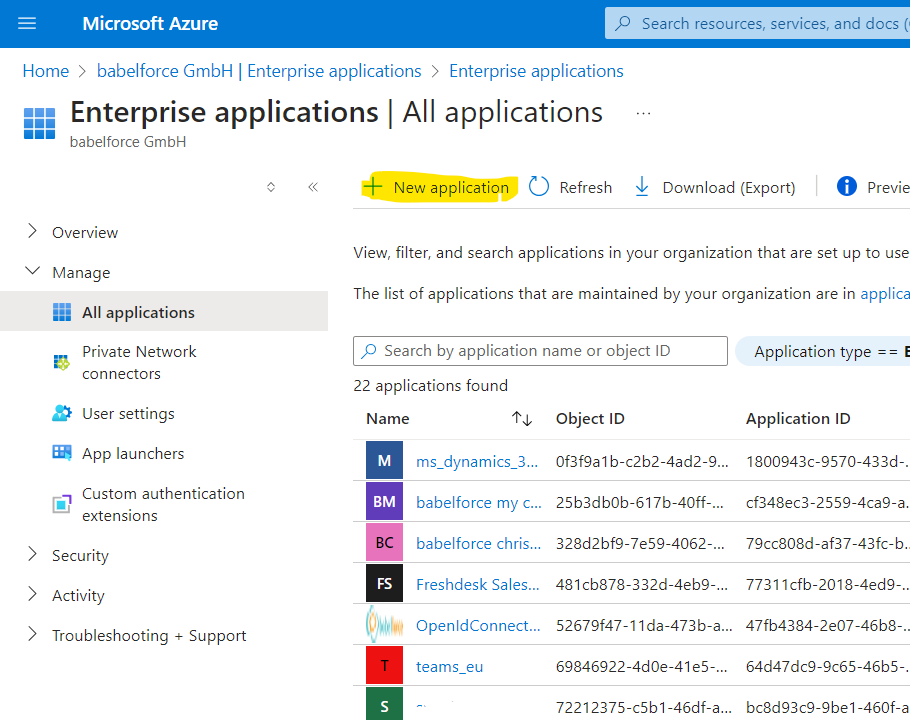

• Click on "New Application"
  •

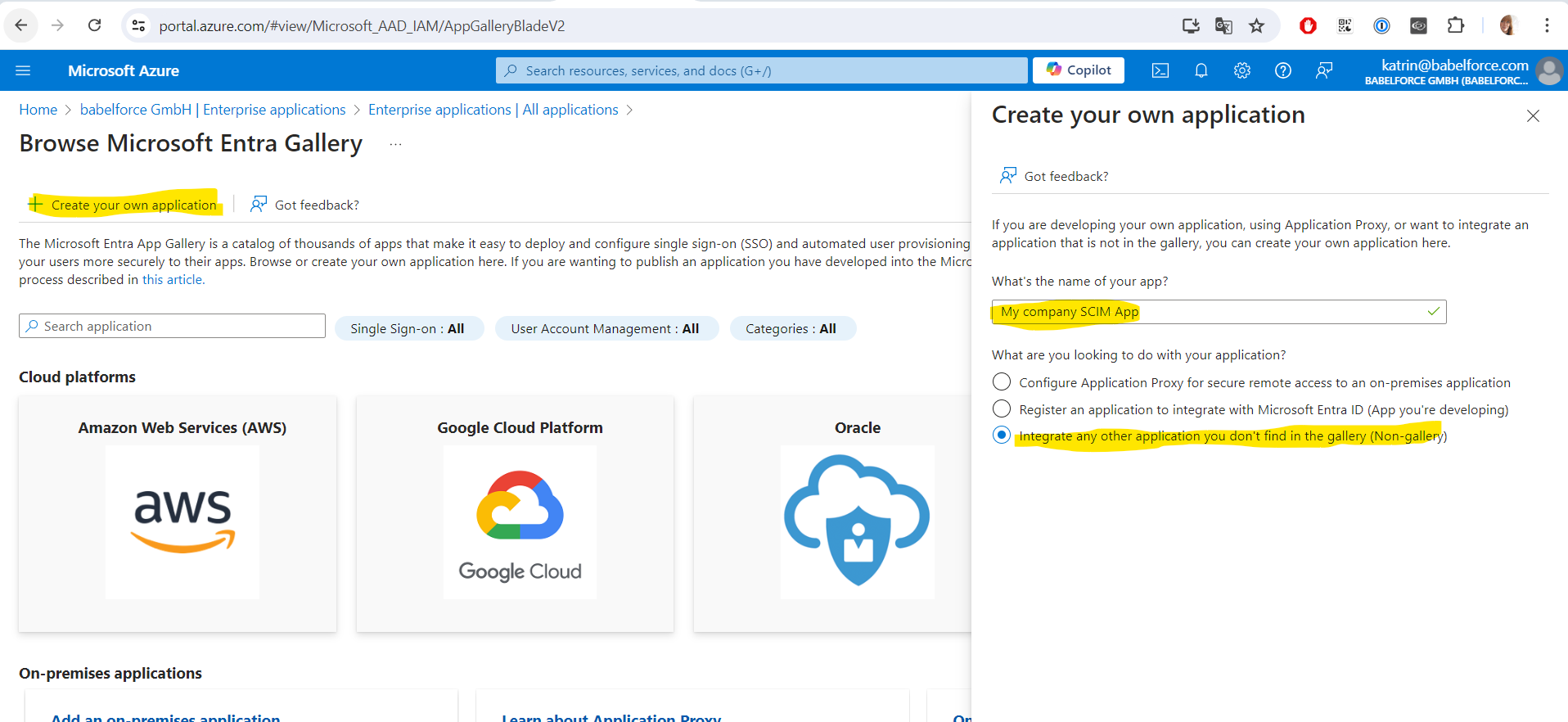

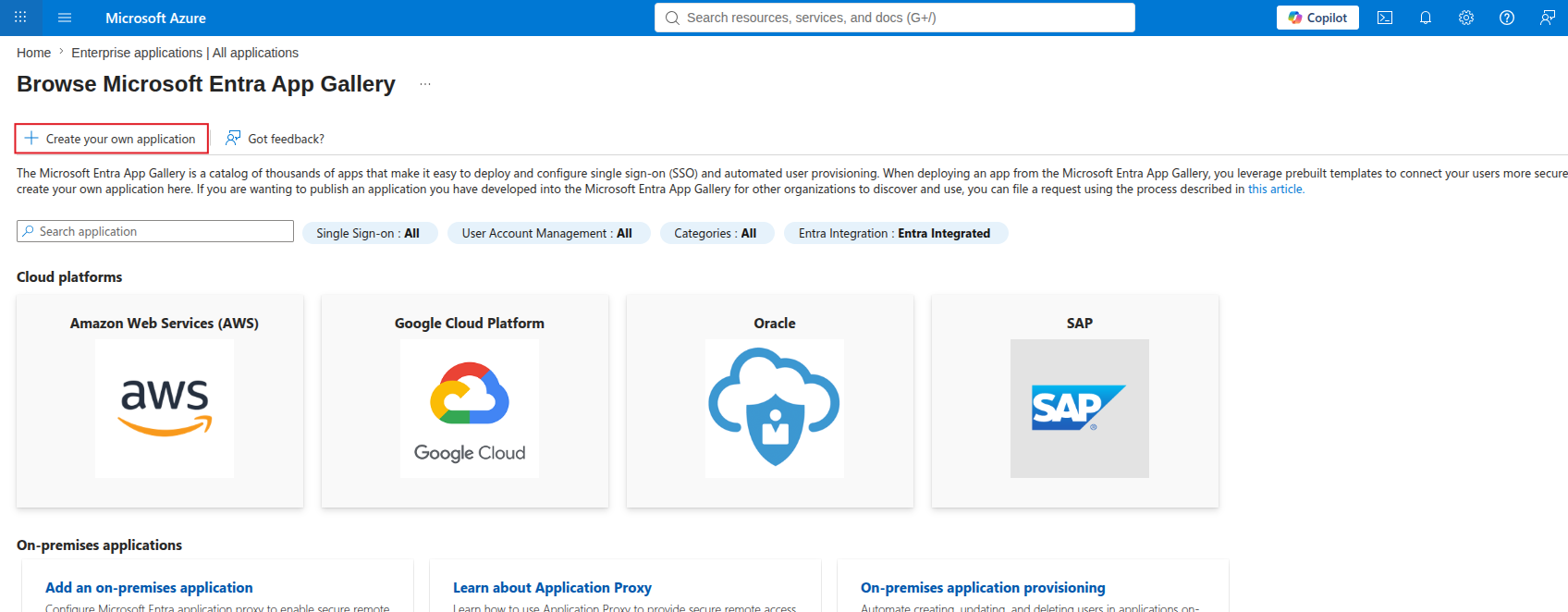

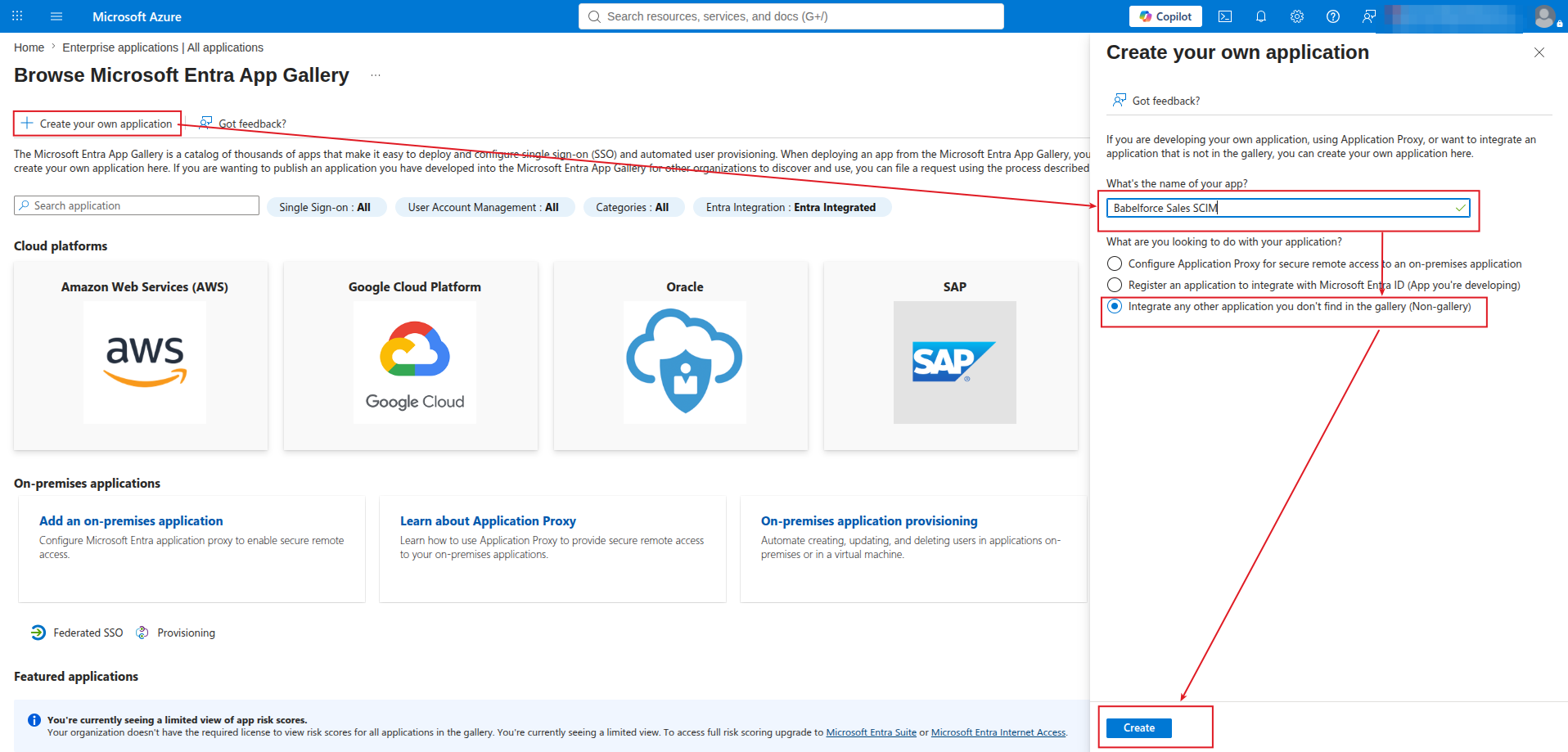

• In the next dialog, click on "Create your own application"
• give your application a name
• ensure that "Non-gallery" option is selected and click on "create"
  •
• Wait until the application is created

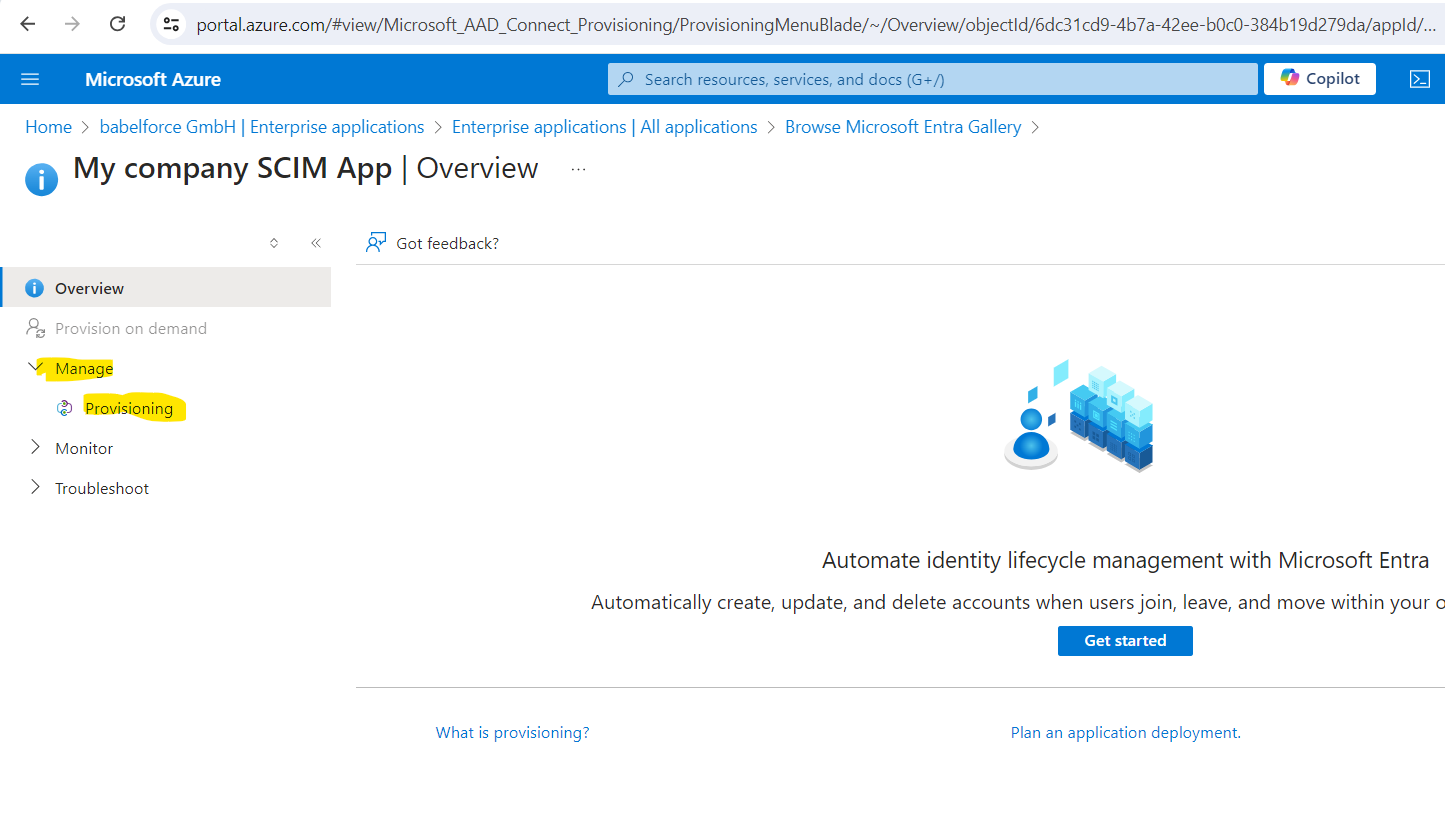

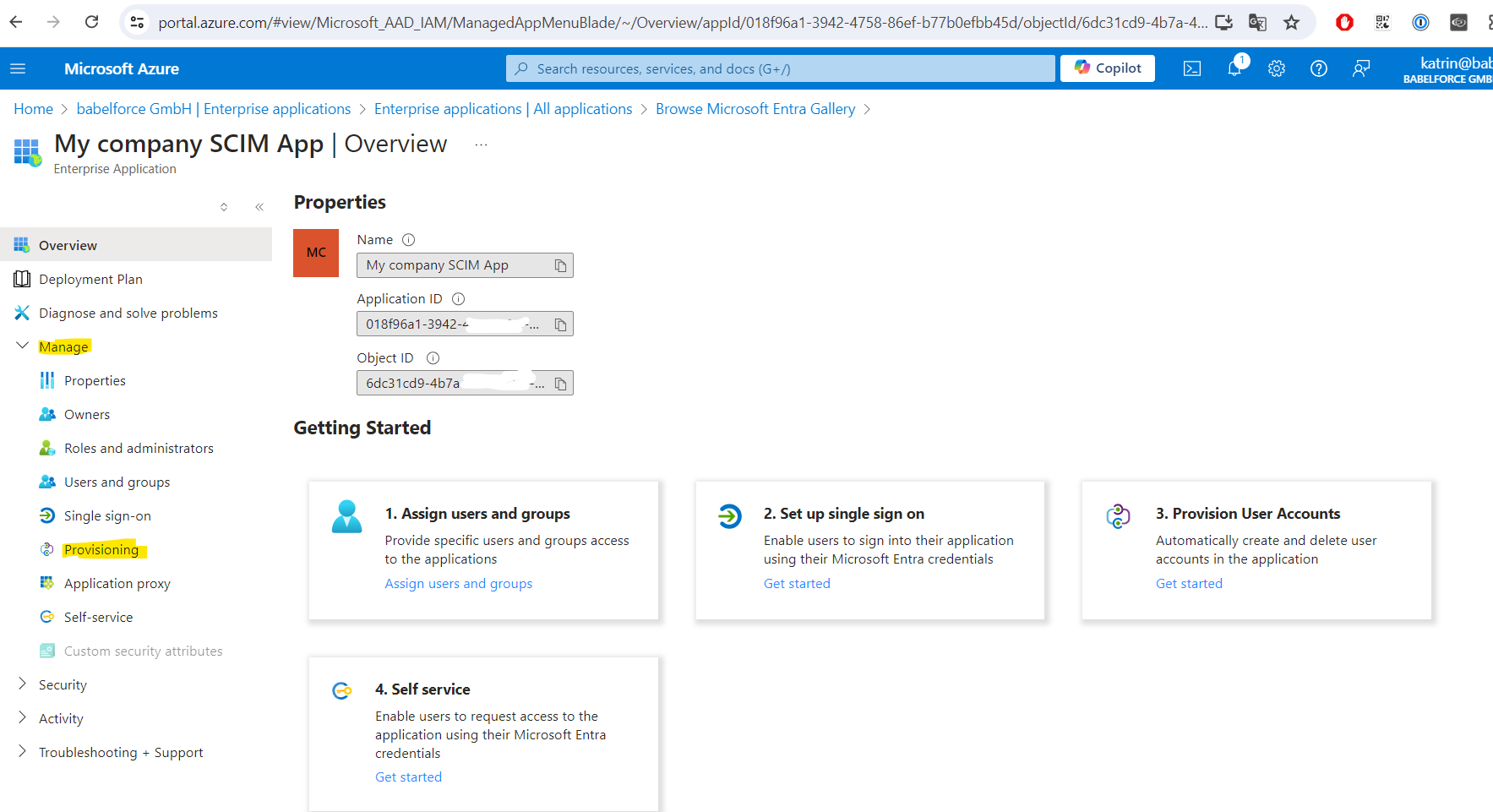

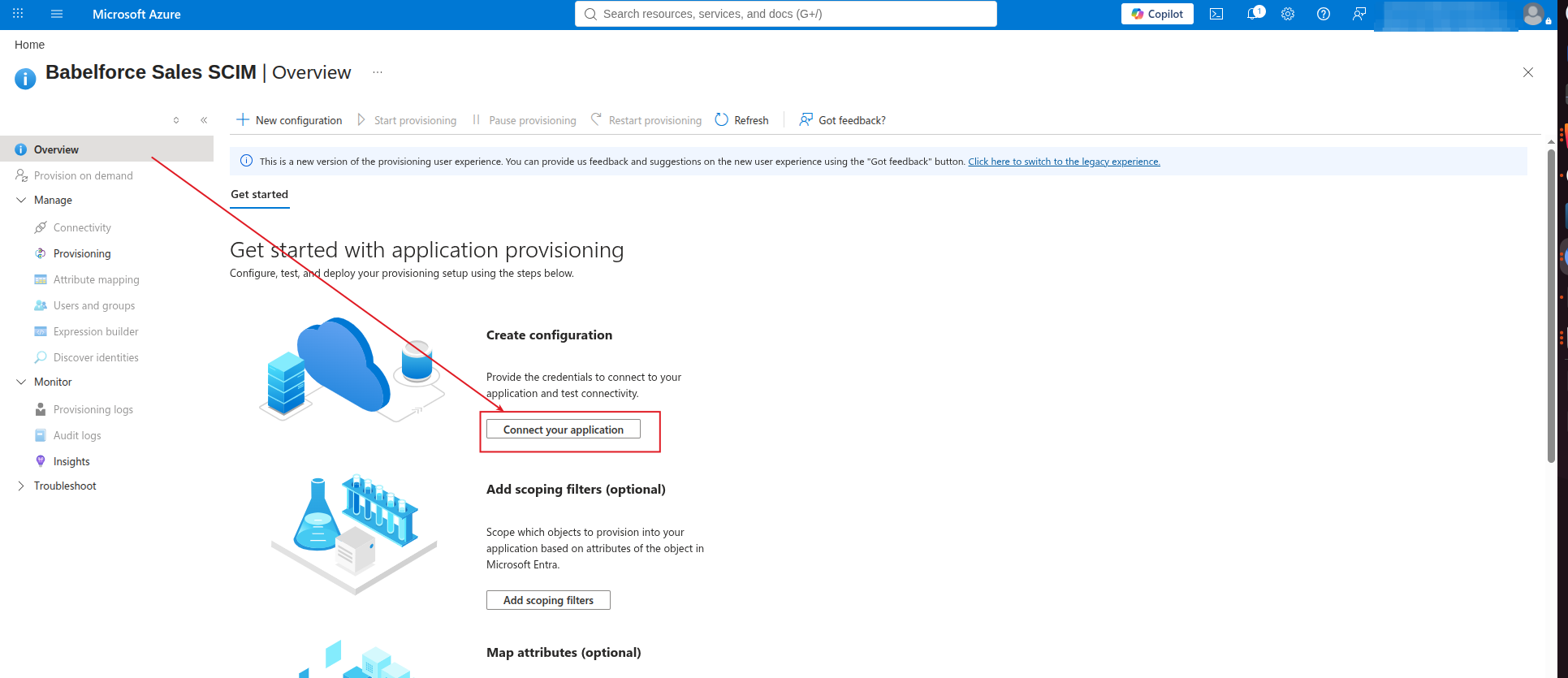

• Once it is, you will see a screen as in the screenshot below

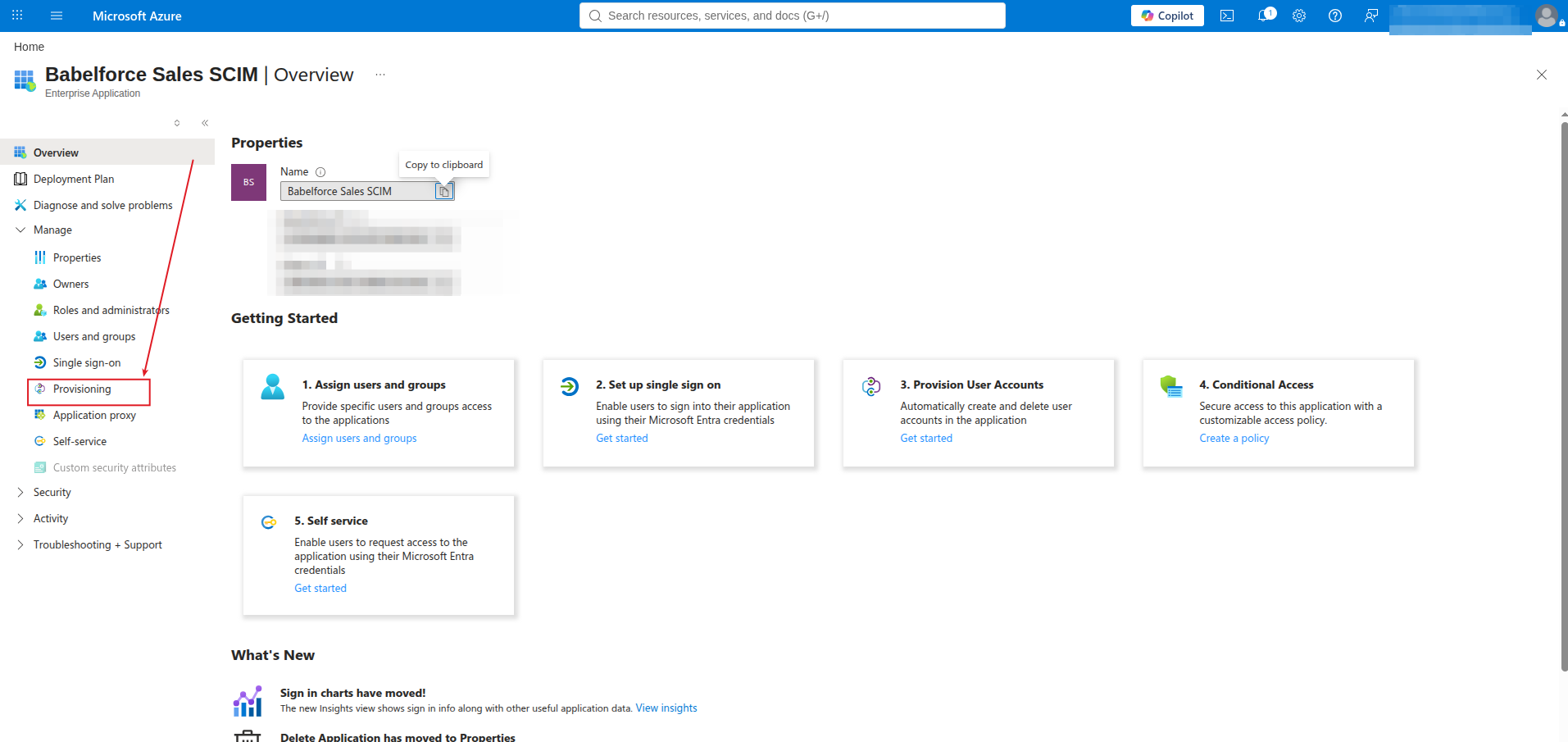

• Click on "Manage" > "Provisioning"
  •
• In the next screen, again, select "Manage" > "Provisioning"
  •
• You now see a longer dialog and these are the settings:

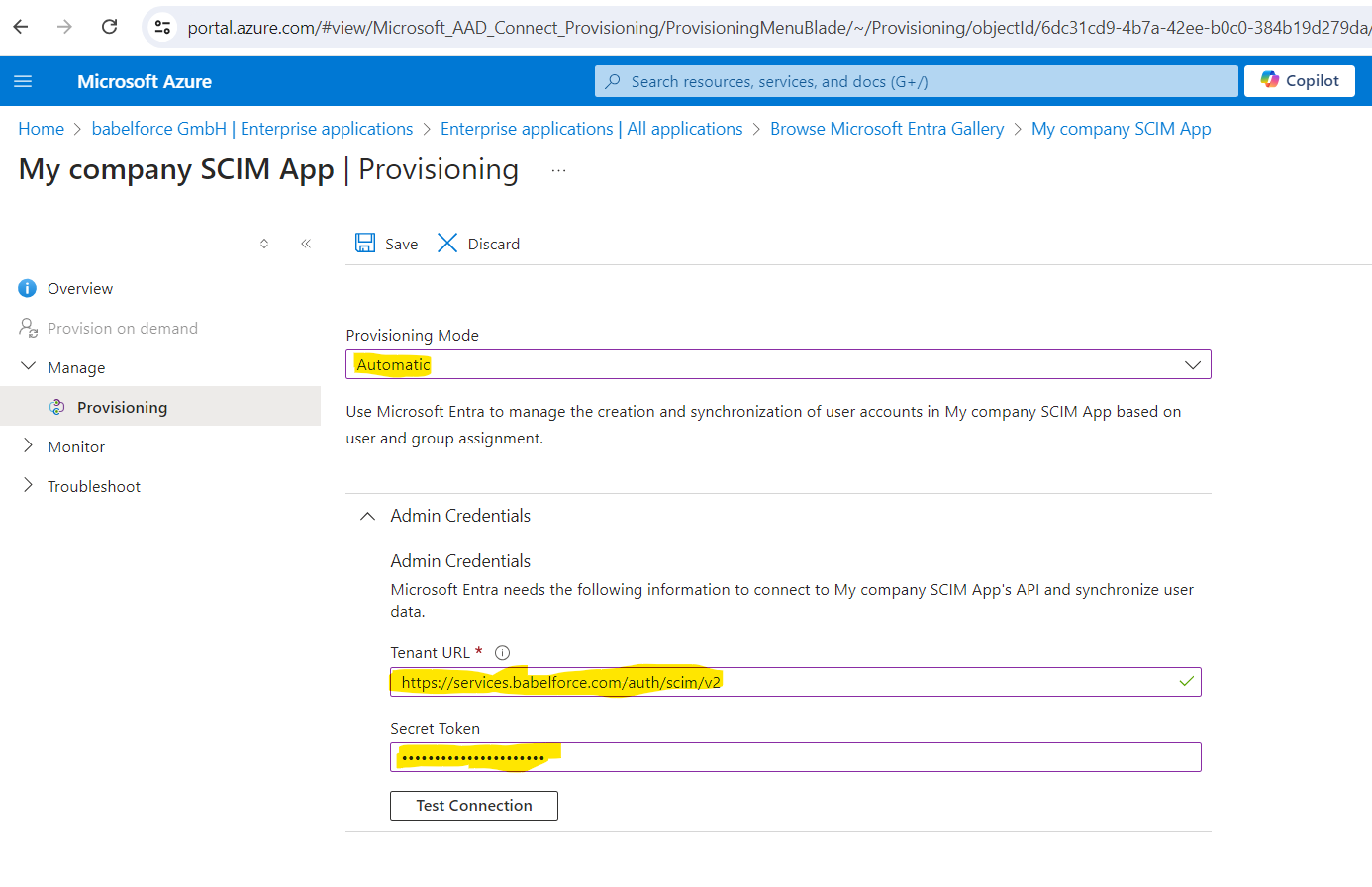

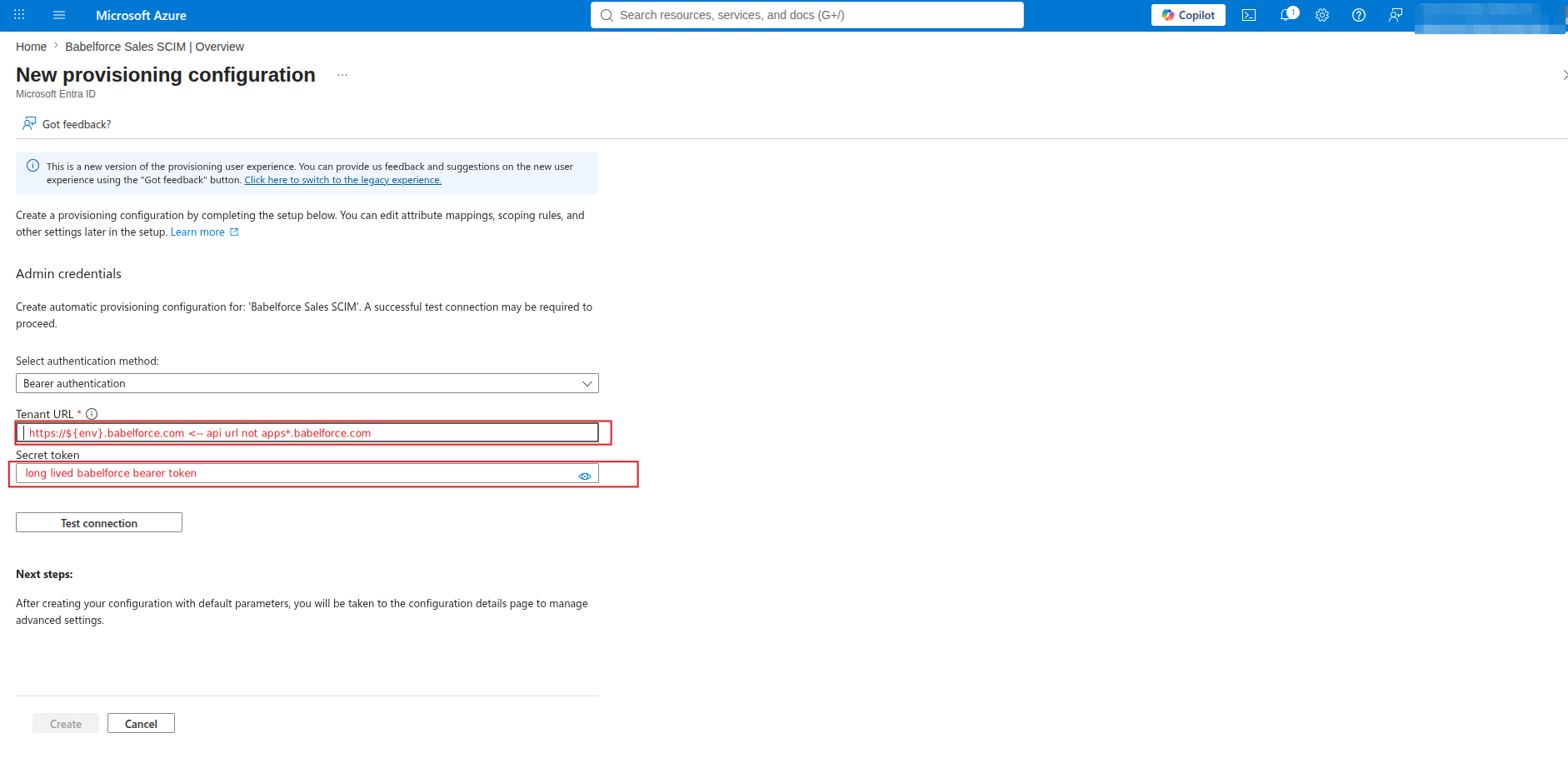

• Select Provisioning Mode: Automatic and add the relevant Tenant URL
  • In the image below is the example of the shared EU environment. Services might be replaced with any custom name space https://{{namespace}}.babelforce.com/auth/scim/v2
  • For the Token, you will now need the long lived token provided by the Success team as mentioned at the beginning of the article

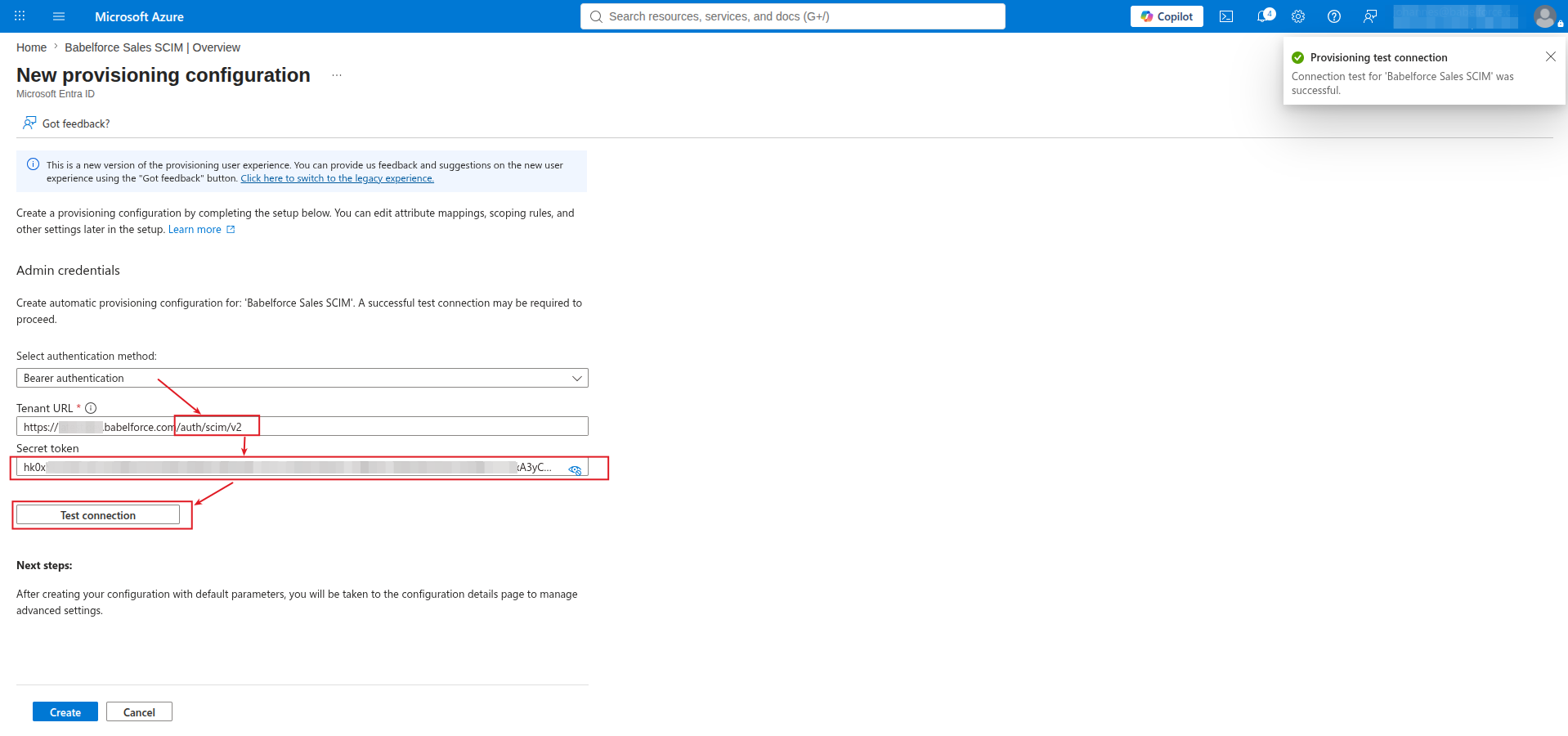

• Click on Test Connection to ensure that the setup was successful - you can only save AFTER you tested the connection
• Click on save once the tests are done
  •

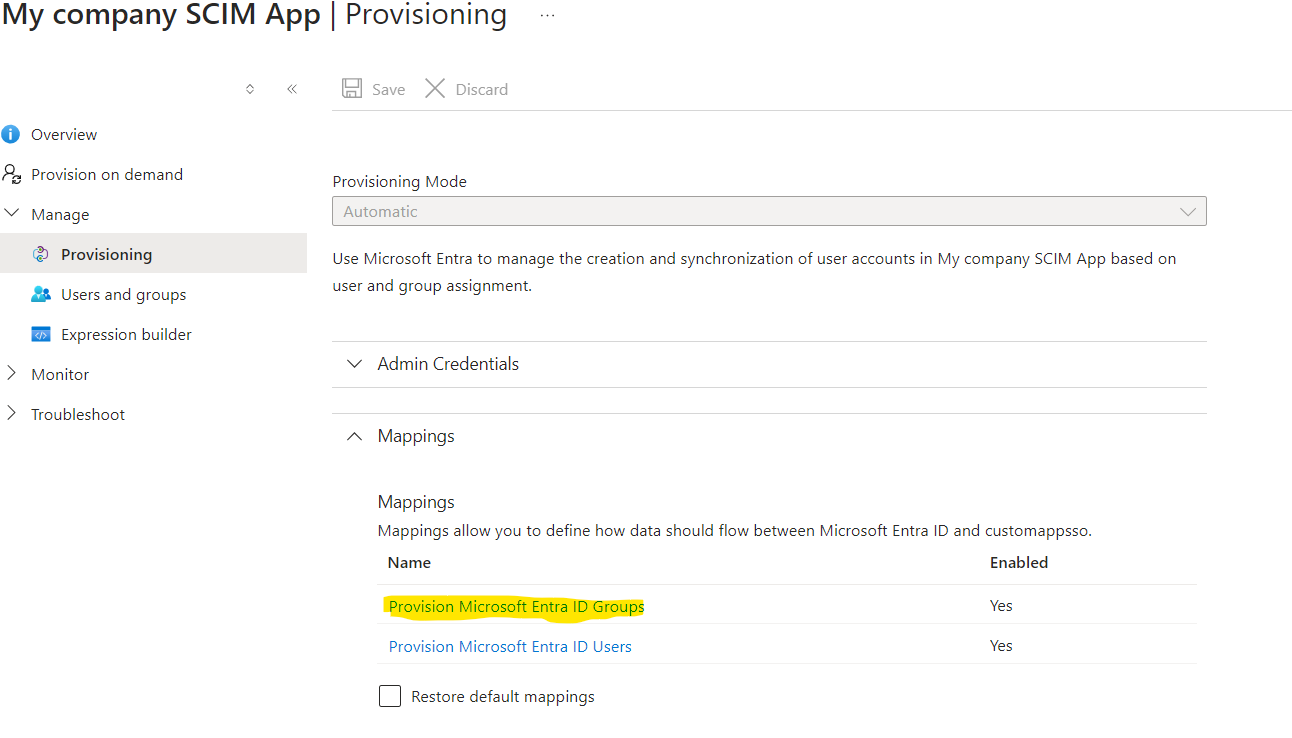

• After this is saved, click on "Mappings" > "Provision Microsoft Entra ID Groups"
  •

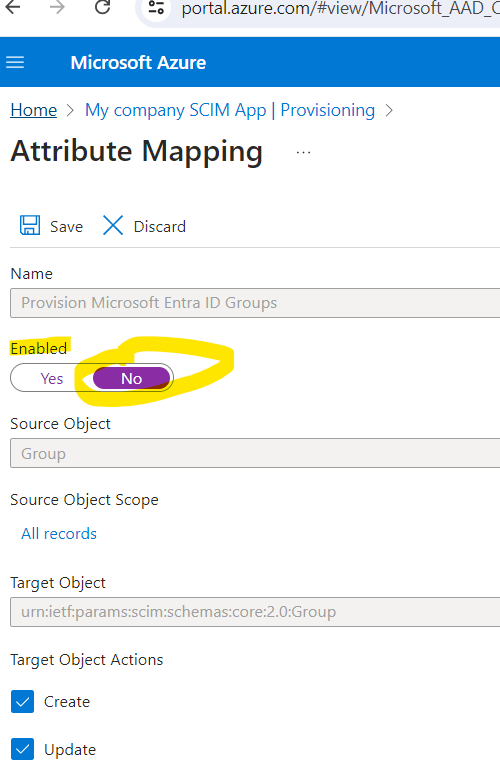

• Toggle "Enabled" to "No" as babelforce does not support SCIM groups. But no worries, we have a working role concept that can be applied. We will get to it.
• Save the changes

  •

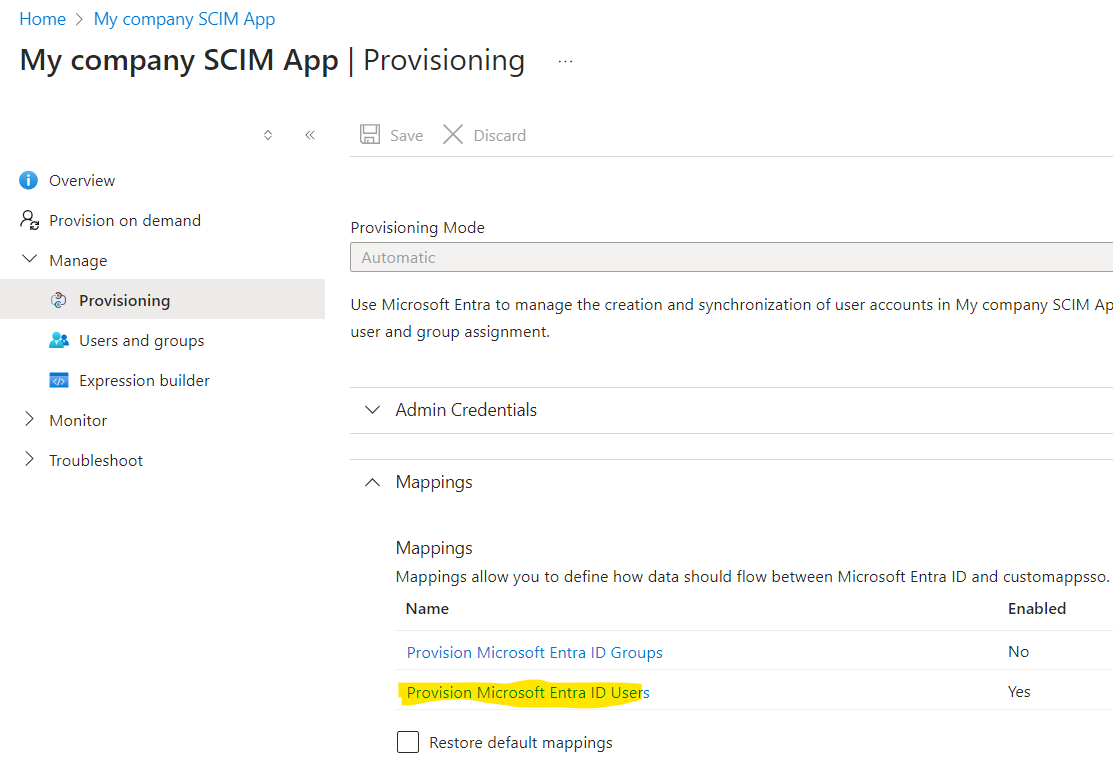

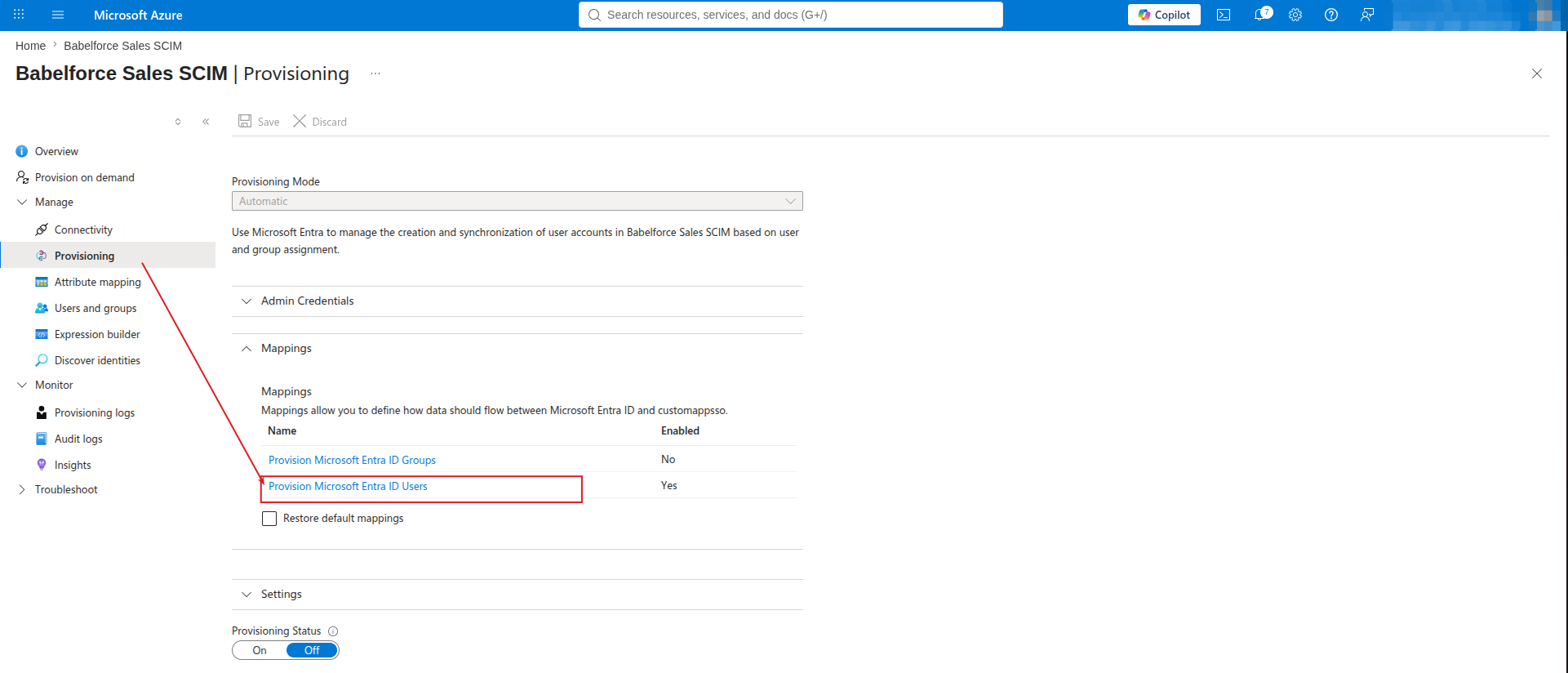

• Go back to the previous view, find "Mappings" > "Provision Microsoft Entra ID Users"
  •
• In this section, scroll down

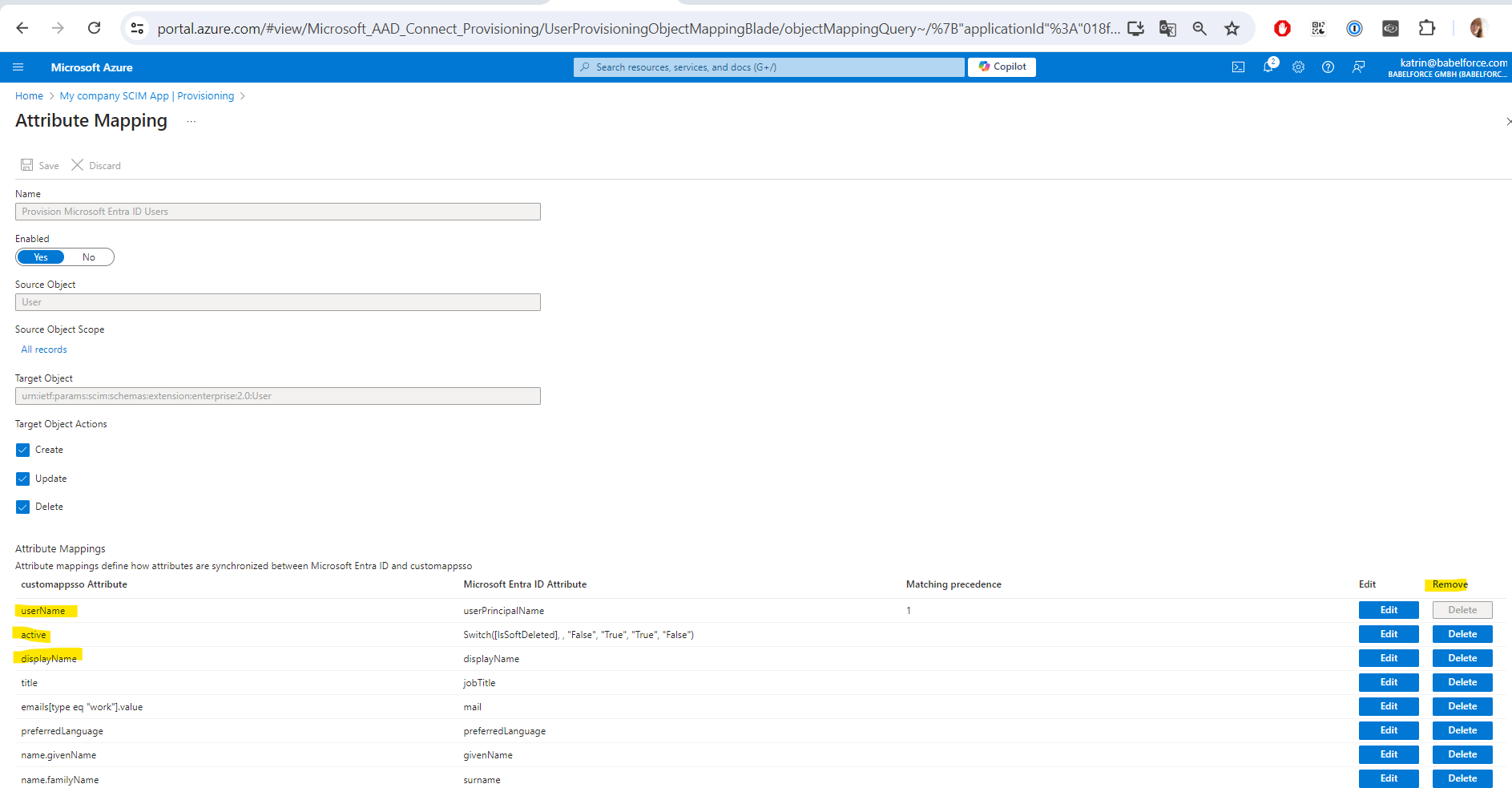

• There is a long list of attribute mappings

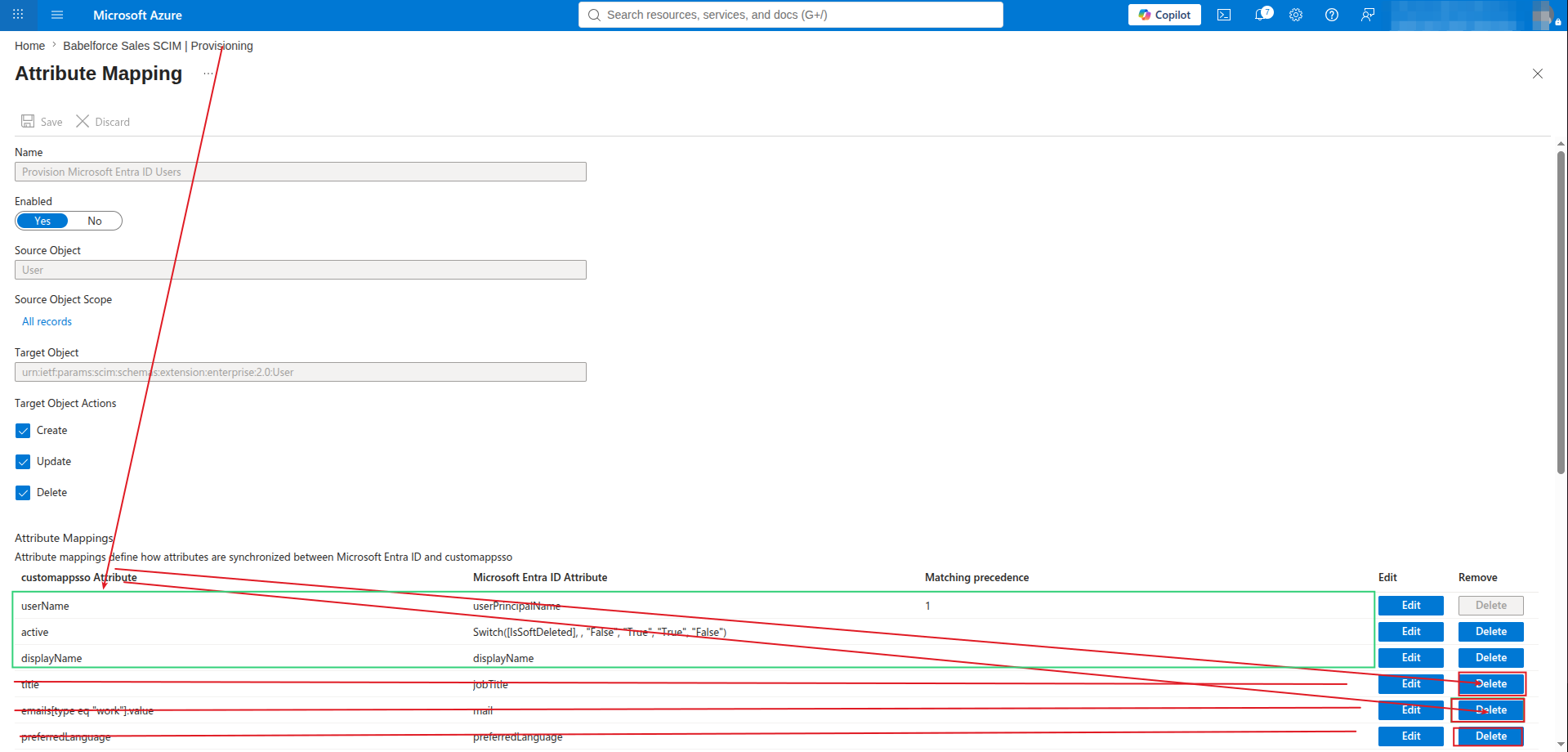

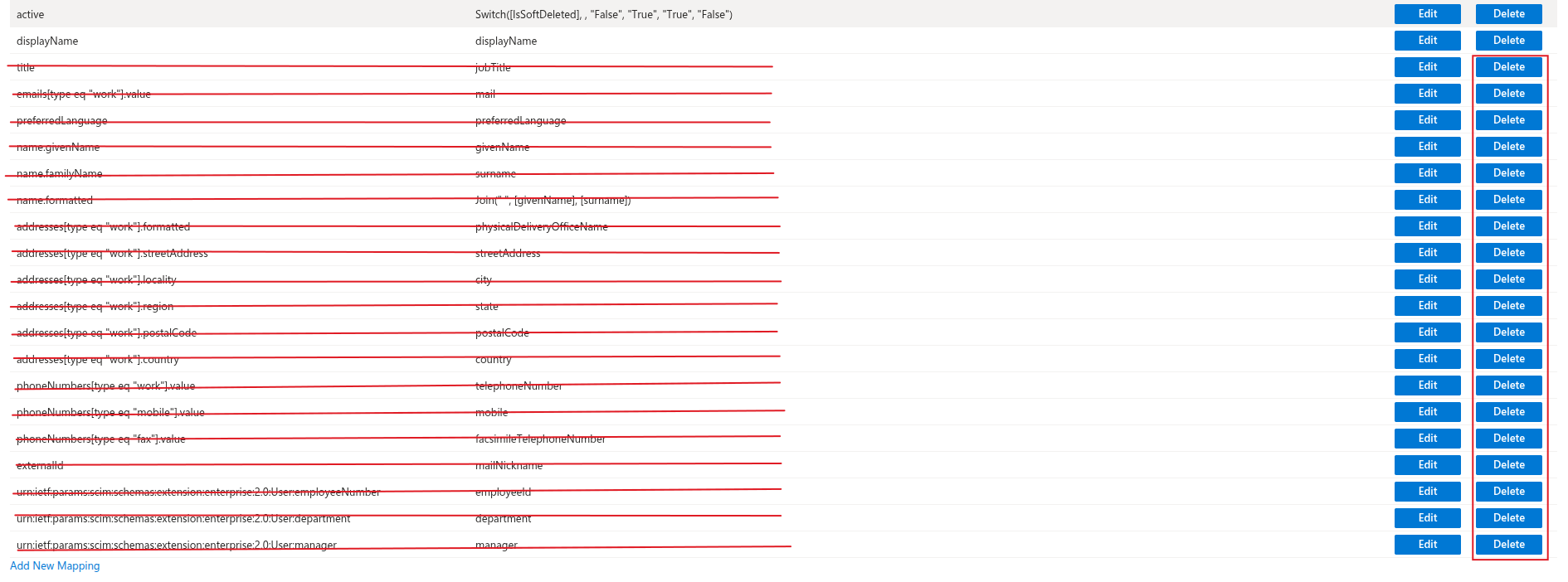

• Go ahead and DELETE all of them except the three that are highlighted
  • userName
  • active
  • displayName
  •
  •

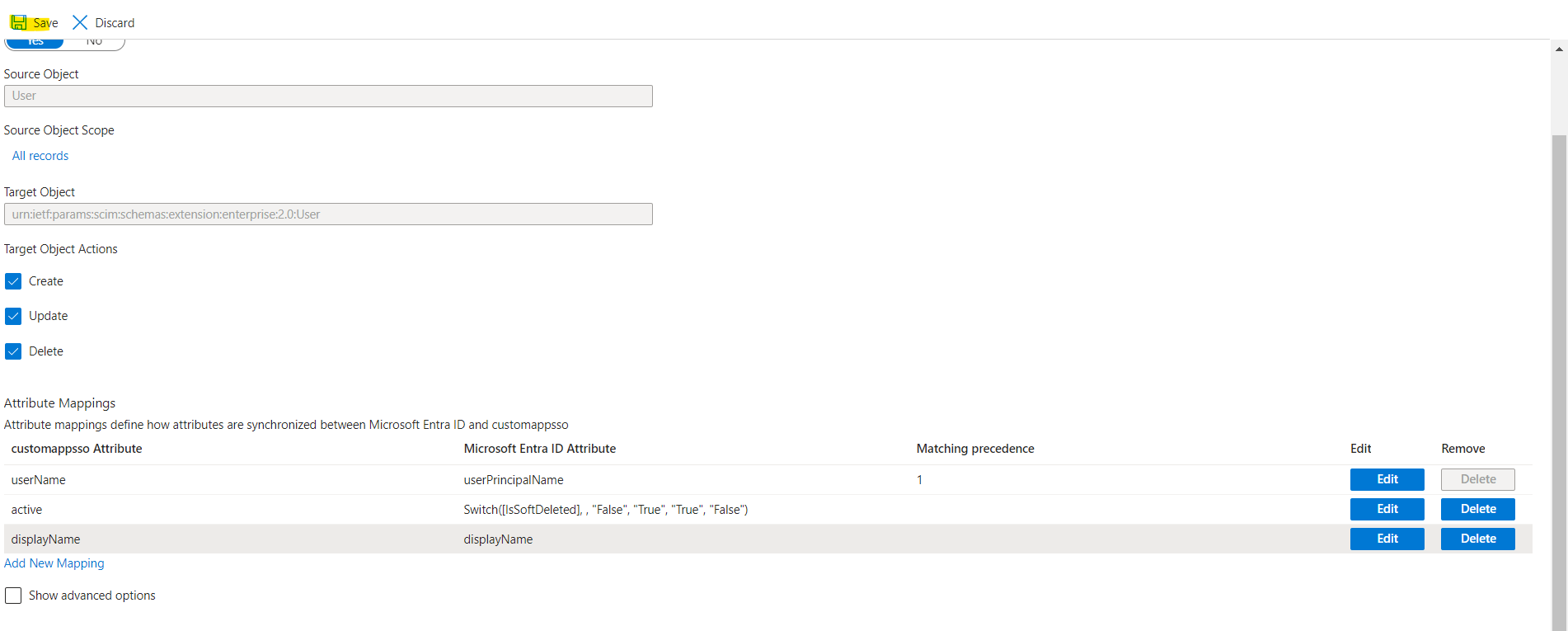

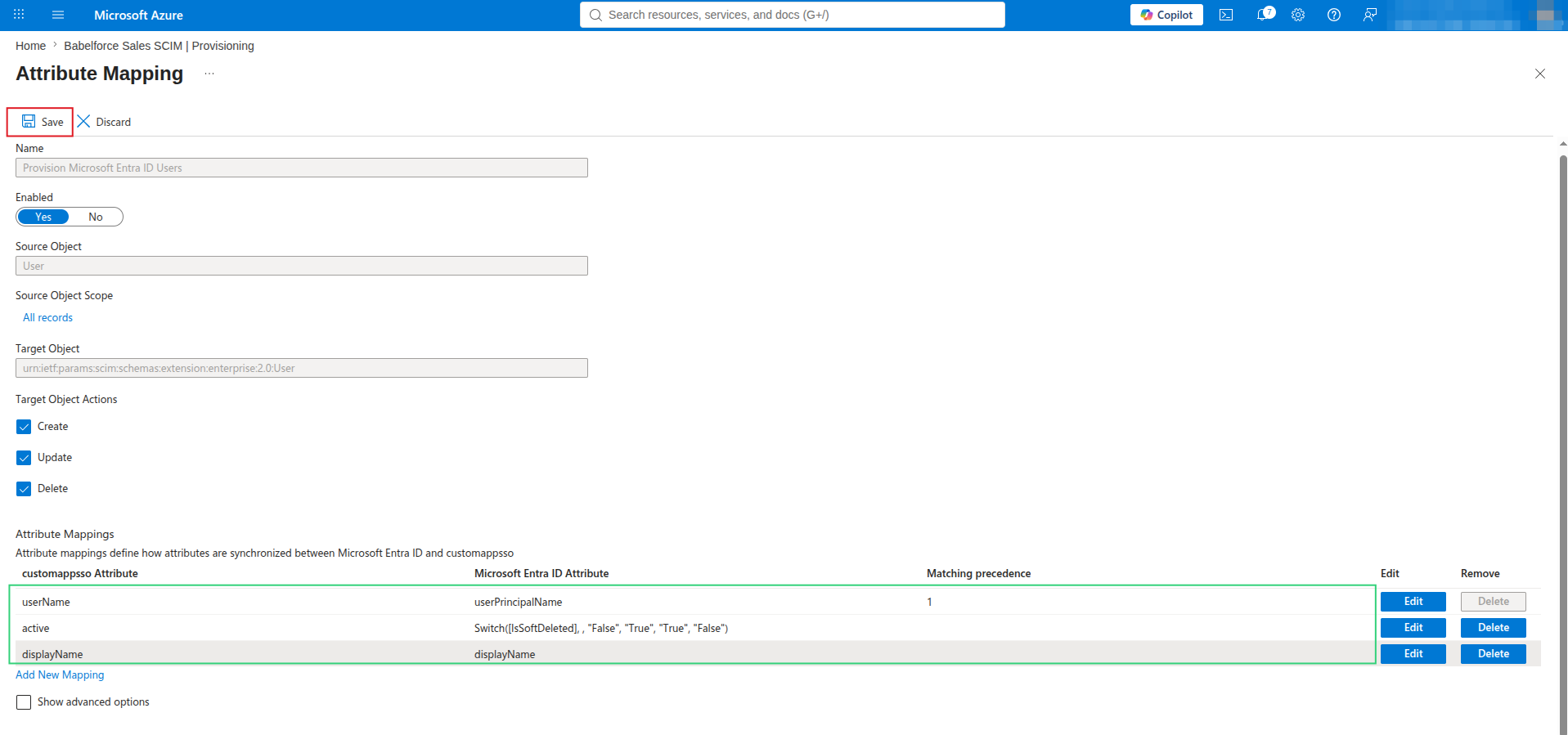

• Once deleted, this is how the section should look like
• Remember to click on Save - otherwise all settings will get lost (when saved, the button is grayed out)
  •
• Stay in the same section

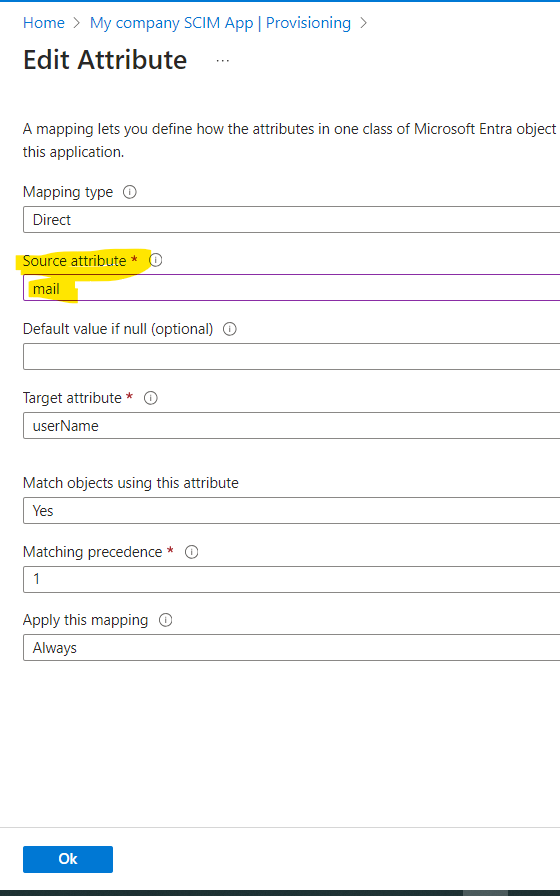

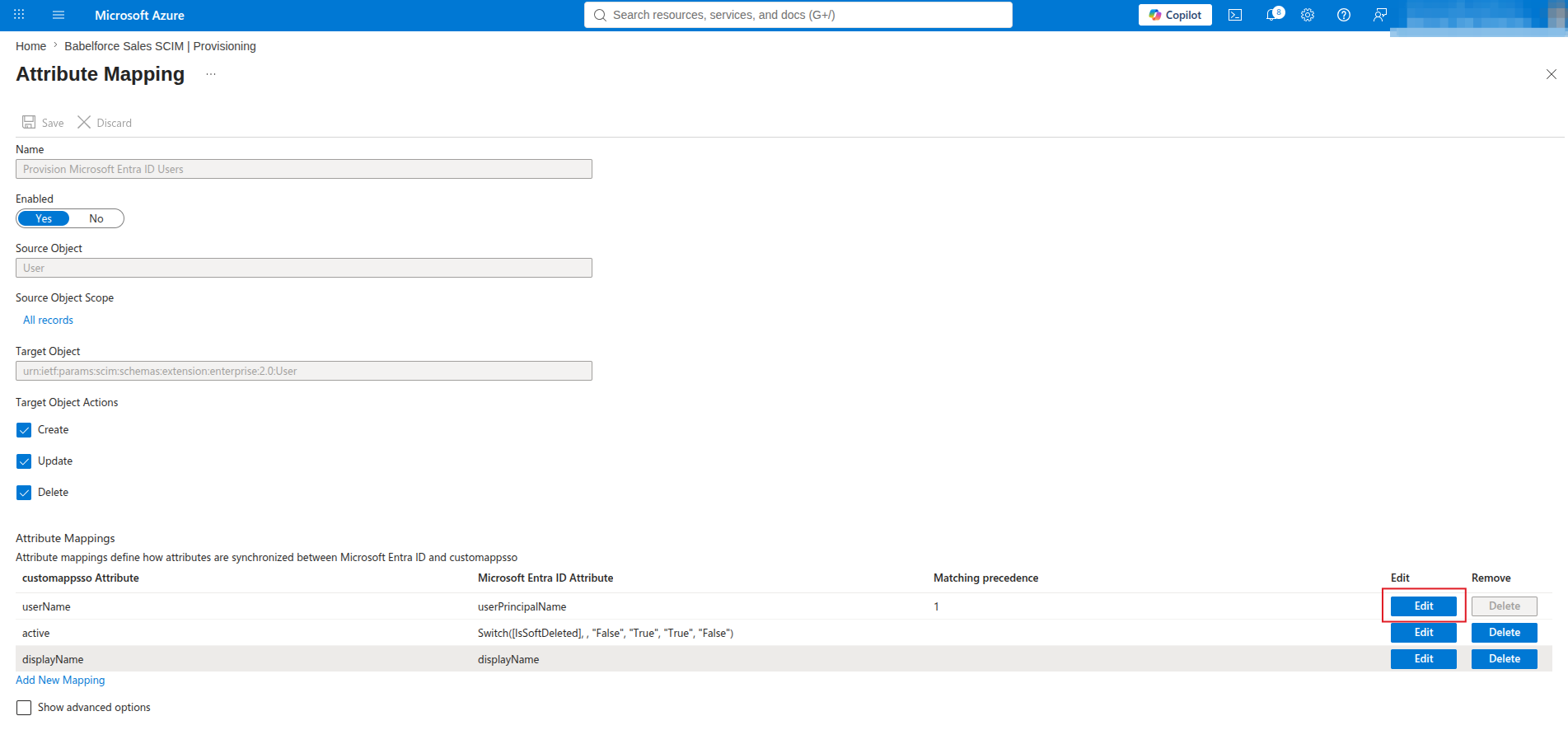

• edit the userName by clicking on "Edit"

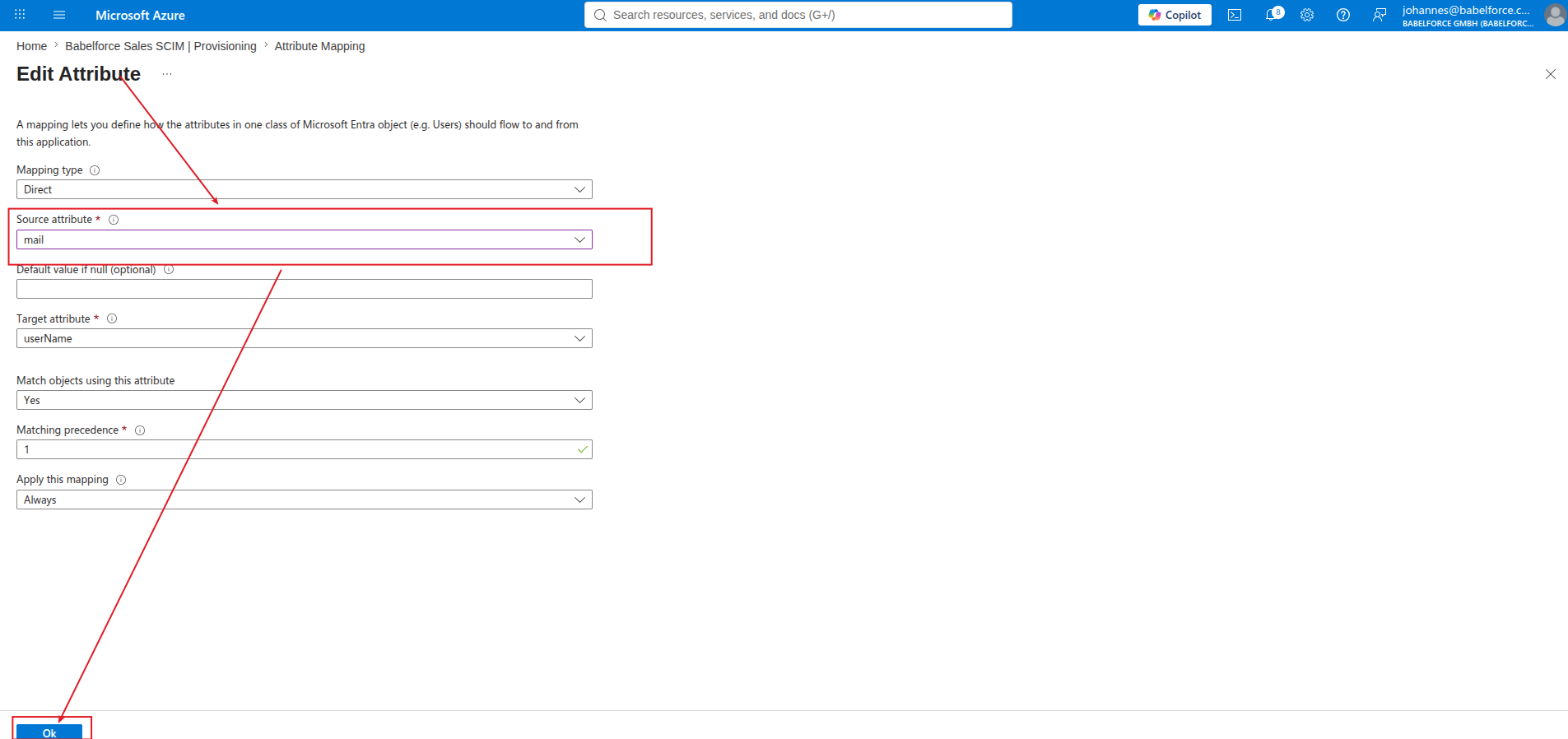

  • change the Source attribute to "mail" (this is equivalent to email)
• Click Ok and then Save in the next view, otherwise the change is NOT persisted
• To see the change in the overview page you will have to reload after saving
  •
• Again stay in the same section and scroll down

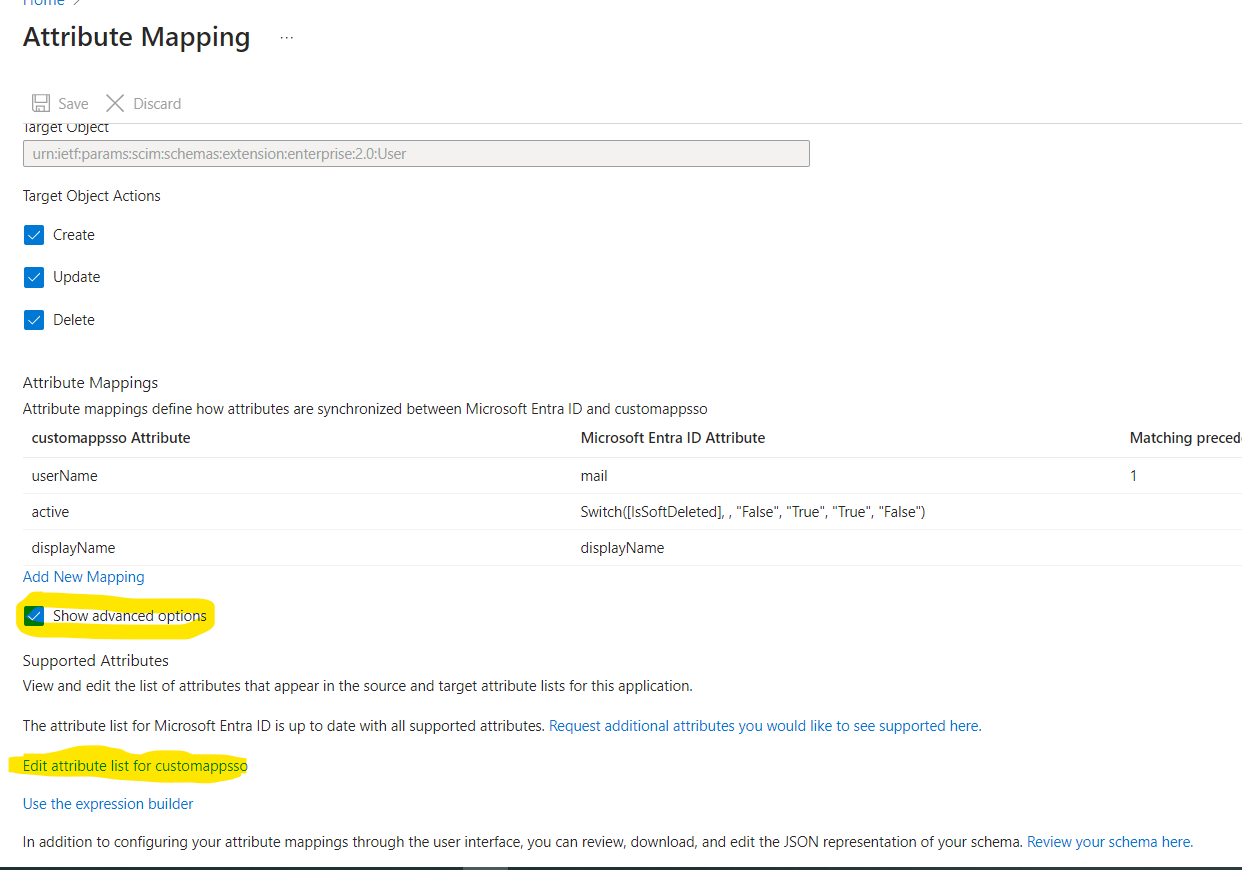

• find "Show advanced options"

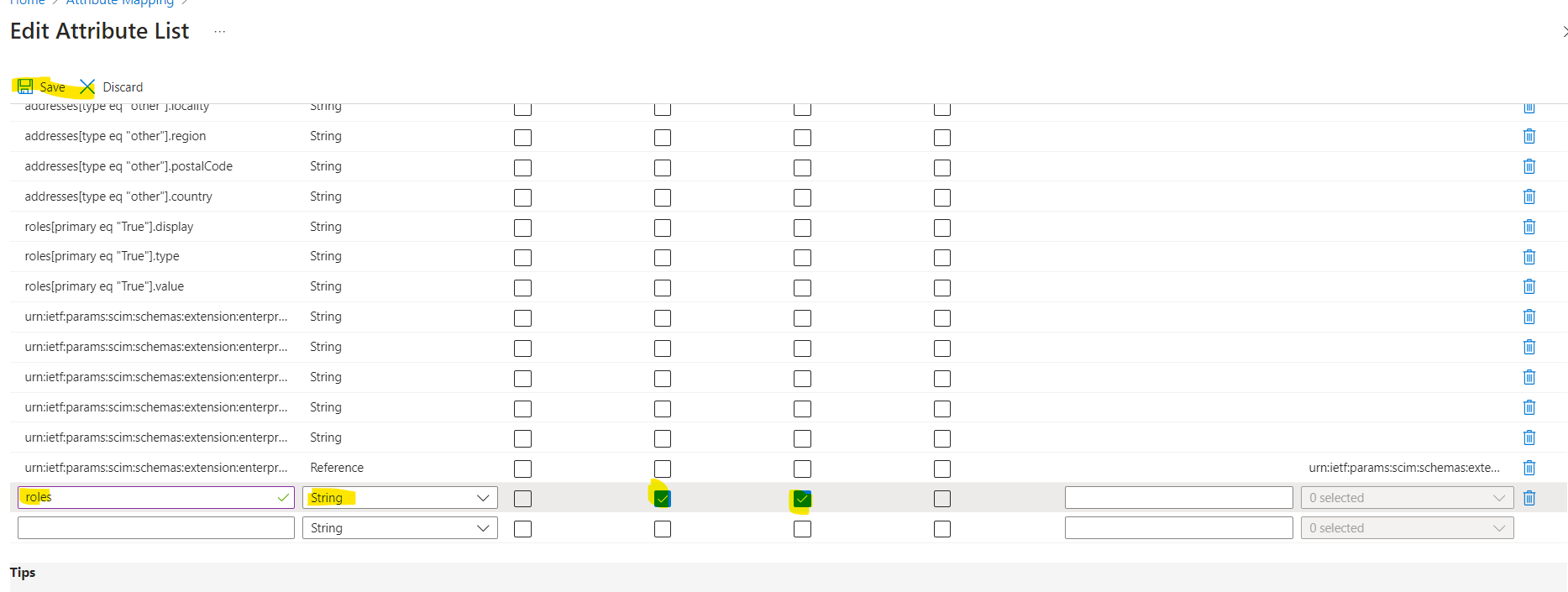

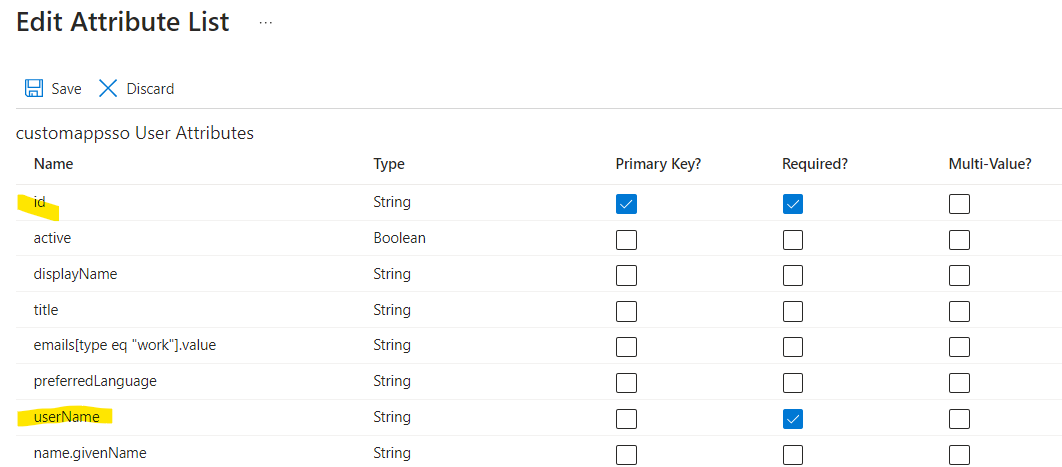

• Tick the box and click on "Edit attribute list for customappsso"


  •
• By default, id should be the Primary Key and Required
• Also, userName should be required
  •
• To enable the role mapping, add the attribute "role" at the end of list
• Tick the box for "Required" and "Multi-Value", otherwise Microsoft cannot send the roles to babelforce
• Click on Save
  •

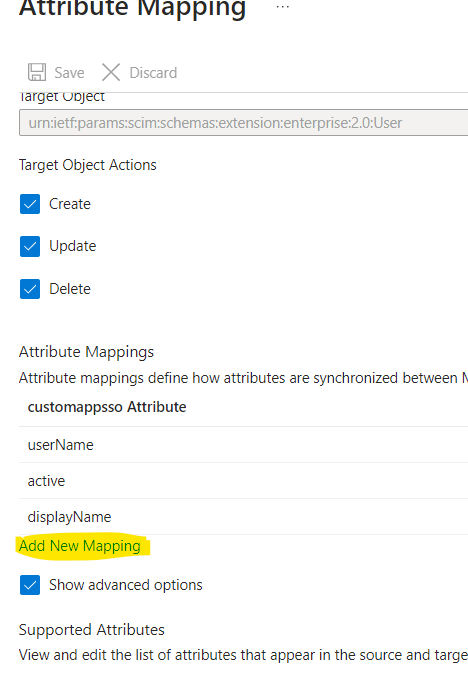

• In the original screen, add a new mapping by clicking on "Add New Mapping"
  •

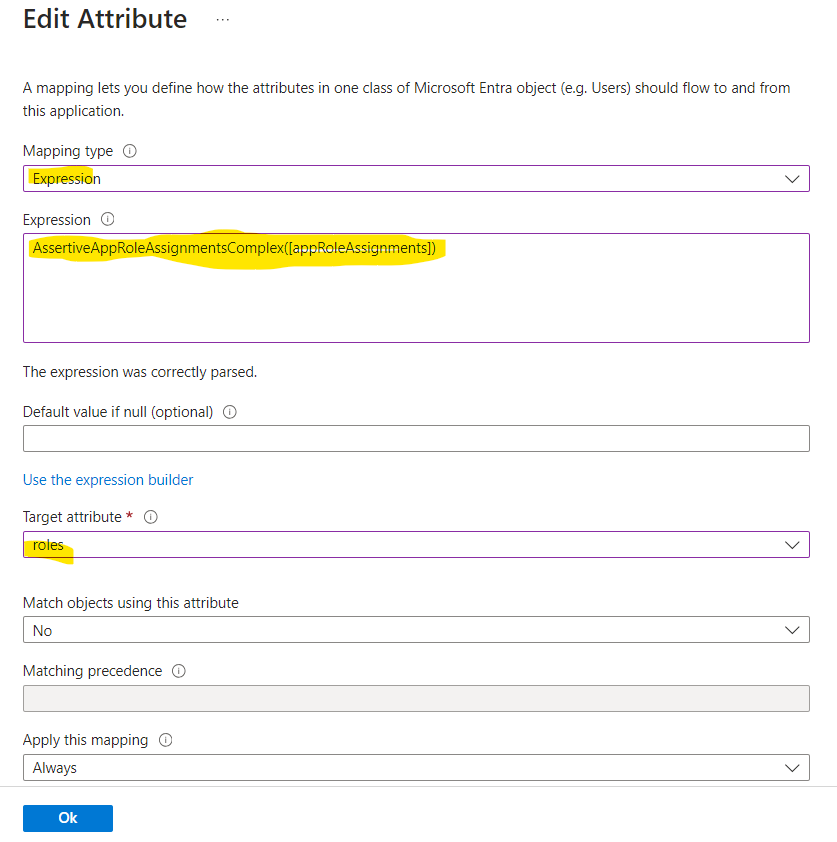

• These are the expected inputs:
  • Mapping Type: Expression
  • Expression: AssertiveAppRoleAssignmentsComplex([appRoleAssignments])
  • Target attribute: roles
  • Default value must be empty
  •
• After confirming with Ok, you will see the original dialog again

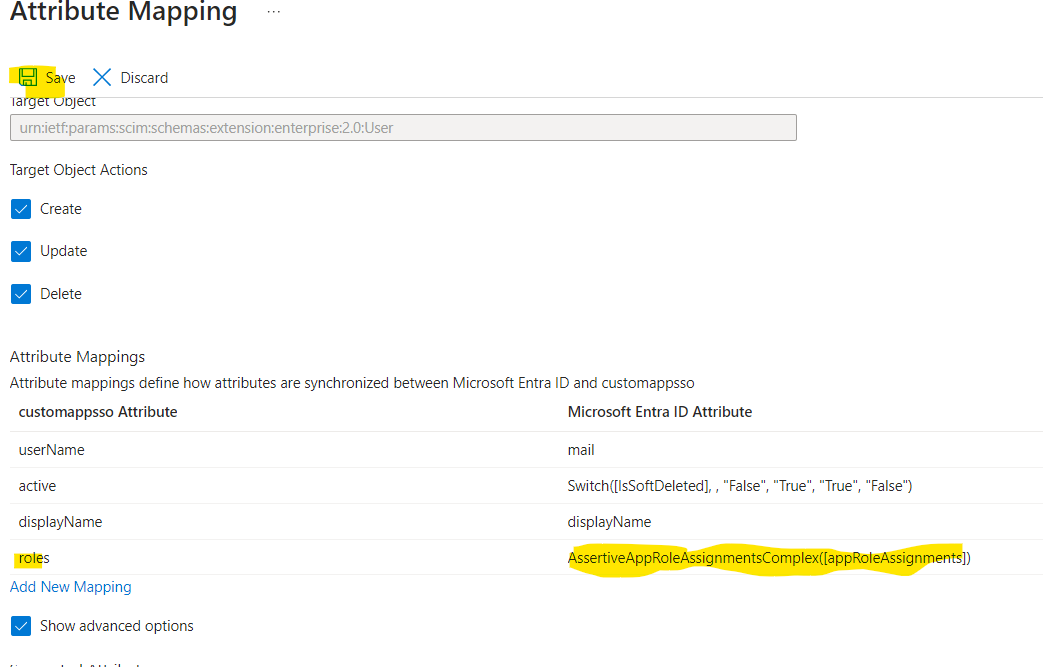

• A new mapping should be visible, similar to the documentation below
• Click on Save
  •

Assign babelforce roles in Entra

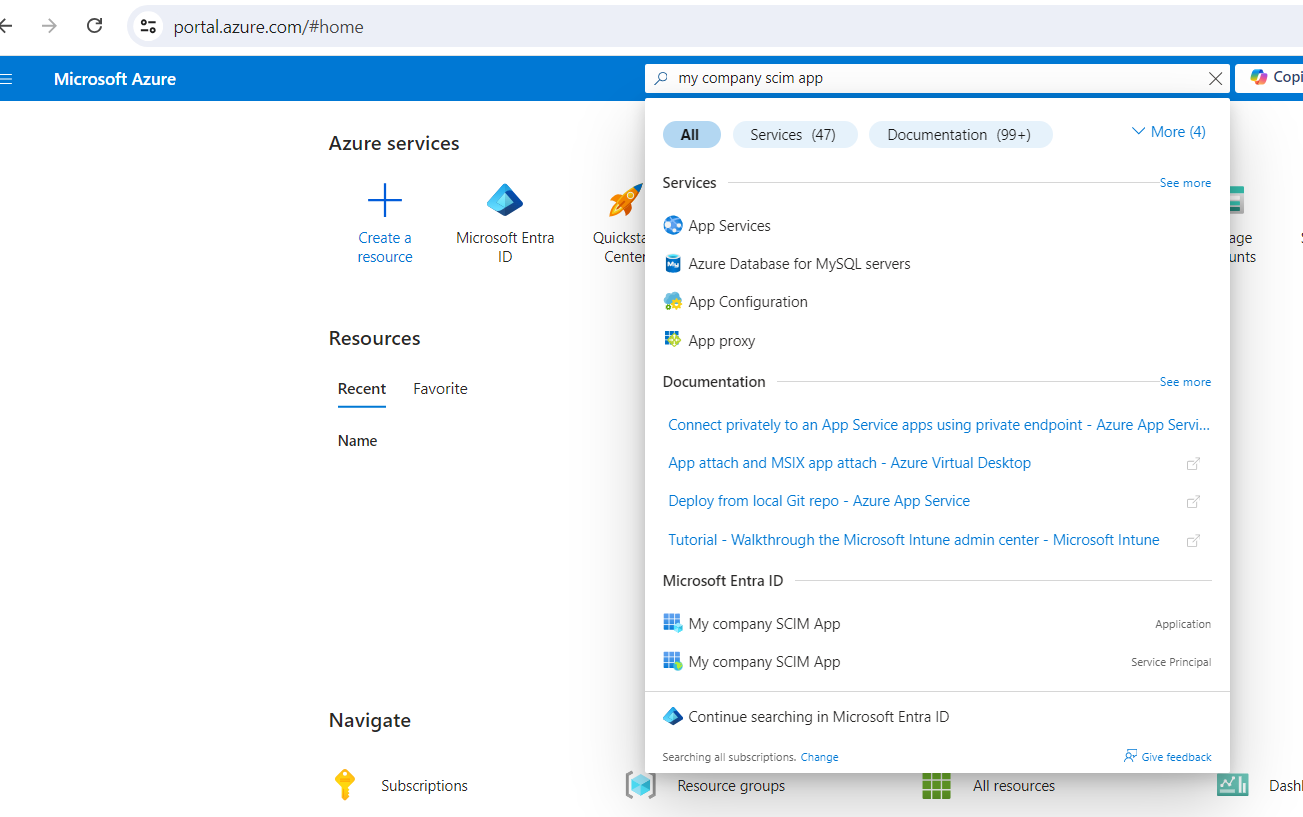

• Find you SCIM app, e.g. by searching for it via the search bar

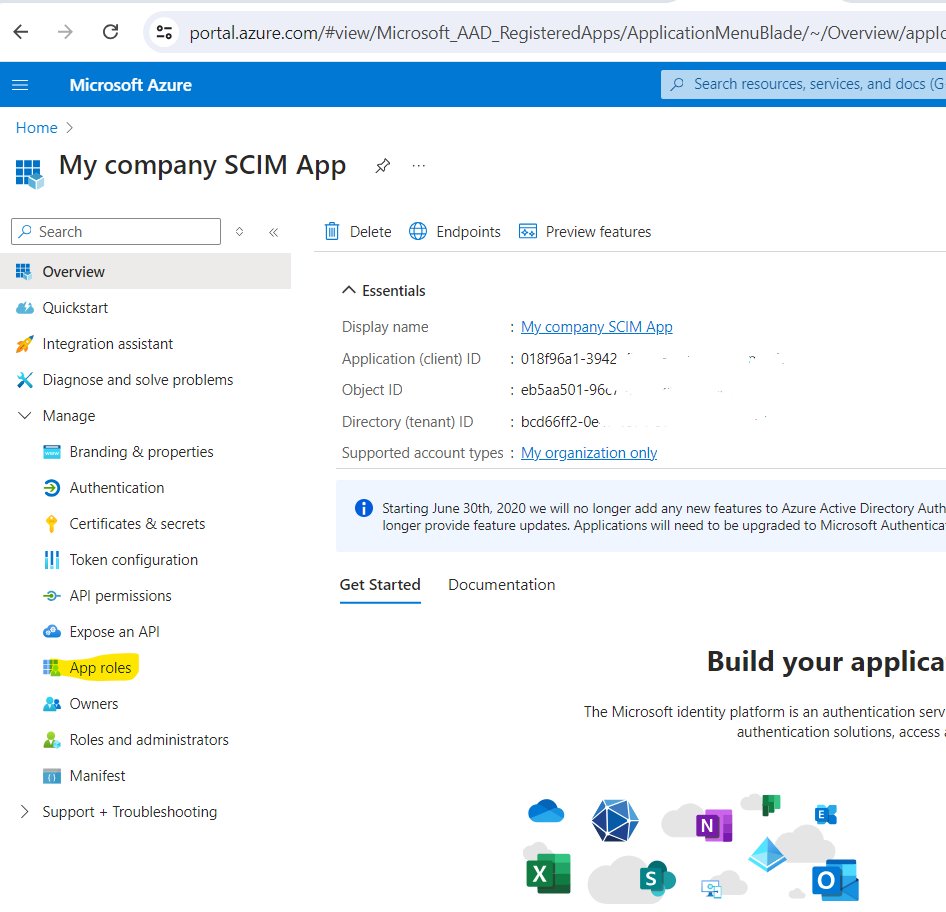

• In the side bar, navigate to "Manage" > "App roles"

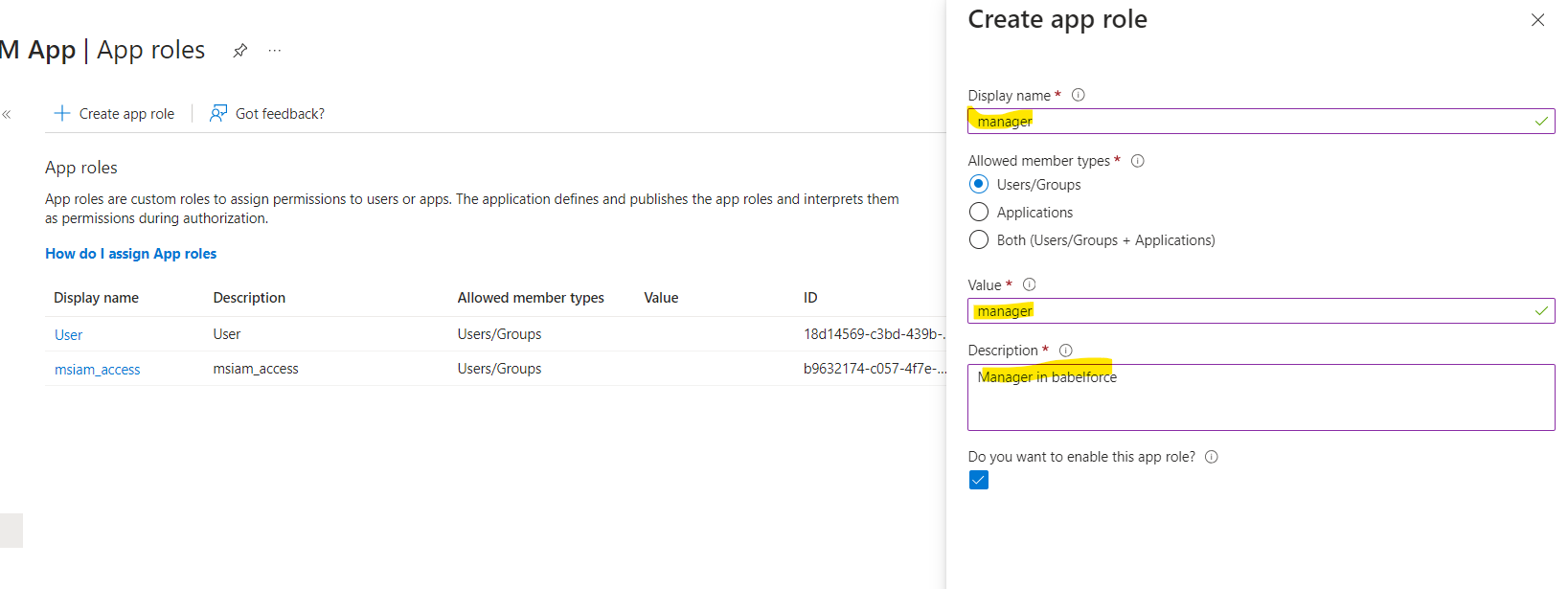

• In the view, click on "Create app role"
• A side window opens
• In the side dialogue, enter the following values matching the babelforce roles, in our example we are adding the role "manager"
  • Display name: manager
  • Value: manager
  • Description: Manager in babelforce
•  You repeat this process for all remaining babelforce roles that are relevant for your team
  •
• After you created all babelforce roles, remove the role "User"
  • First disable and then delete the role "User"
  • You may keep the user msiam_access.

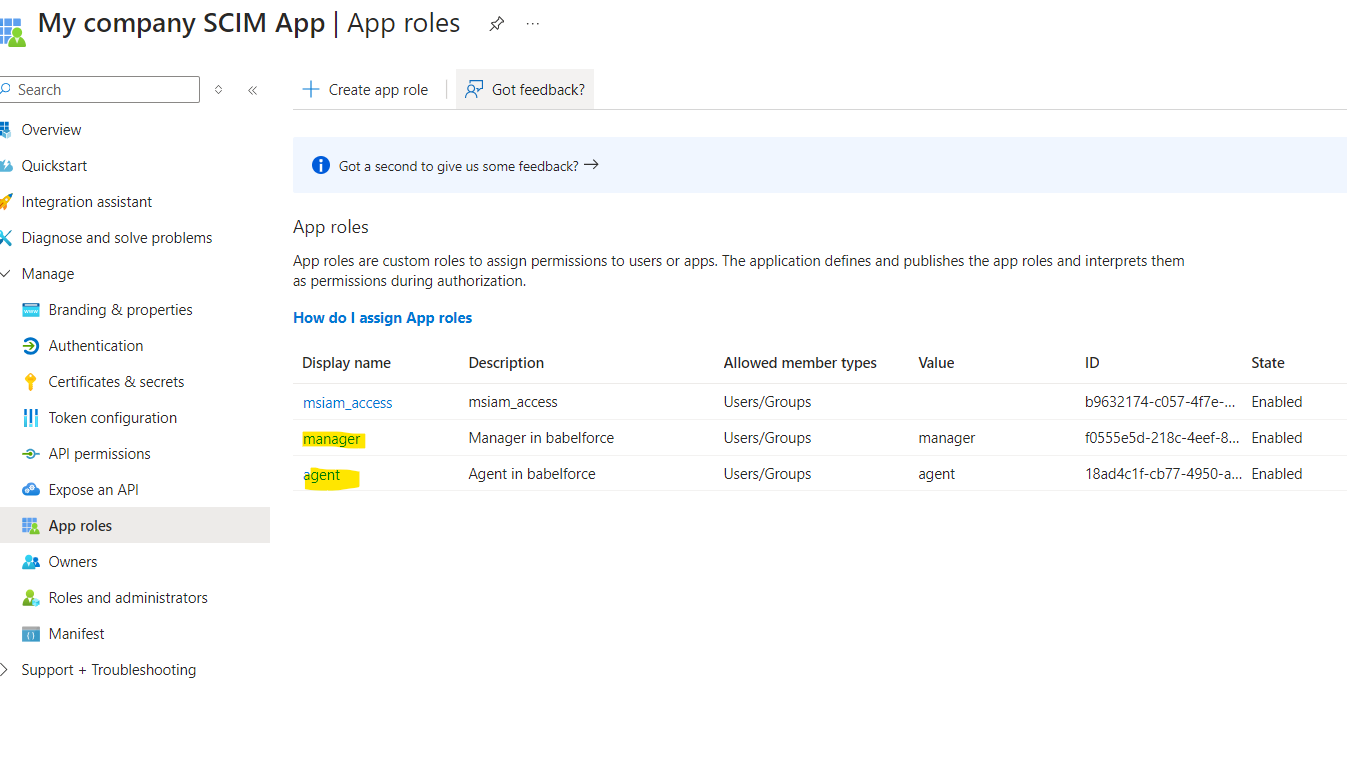

• In the end, all relevant babelforce roles should be listed in this view, in our example it is only "manager" and "agent"
